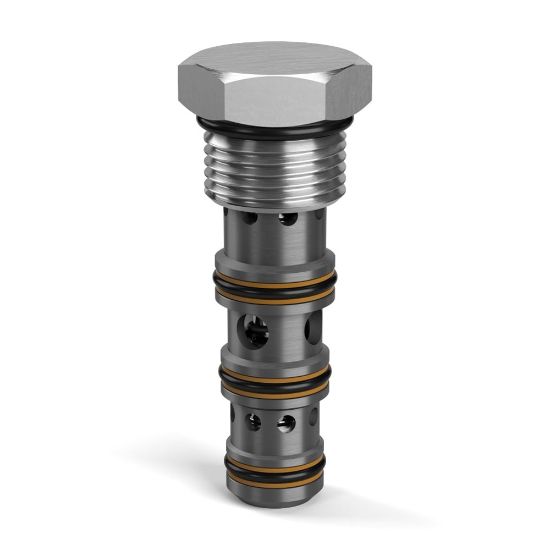

Picture of Flow Divider/Combiner Valves - L04A3-10-10V

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Flow Divider/Combiner Valves - L04A3-10-10V

Parker offers four different flow divider/combiner valves to cover a wide range of flows up to 320 lpm (85 gpm) and pressures as high as 420 bar (6,000 psi). Standard and custom ratios are available, along with optimized flow range options.
Availability:
Backordered
SKU L04A3-10-10V
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Standard Flow Rate Setting2.1-5.3 GAL/MIN, 8-20 L/MINFlow Rate16 GAL/MIN, 60 L/MIN
Ratio50/50Seal MaterialFluorocarbon
For Fluid TypeMineral-based or synthetic hydraulic fluidsMaximum Operating Temperature+400
Operation TypeAutomaticCavity SizeC10-4
Connection Sizen/aActuation TypeInterlocking Spools
Weight0.26DivisionMobile Hydraulic Systems Division Europe
FunctionFlow Divider/CombinerOperating Temperature-15 to +400
Maximum Inlet Pressure Rating6000Standard Flow Rate Setting2.1-5.3
Body Materialn/aMinimum Operating Temperature-15
Seal MaterialFluorocarbonConfigurationn/a
Maximum Flow Rate16Flow Rate16
Flow Rate Accuracy10%Maximum Kinematic Viscosity45-2000 SSU (6 to 420 cSt)
Maximum Operating Pressure6000Ratio50/50
Valve MaterialAll parts steel. All operating parts hardened steelFilter Efficiency RatingISO 4406 18/16/13, SAE Class 4
Connection Typen/aInstallation Torque37
DivisionHydraulic Valve Systems Division
