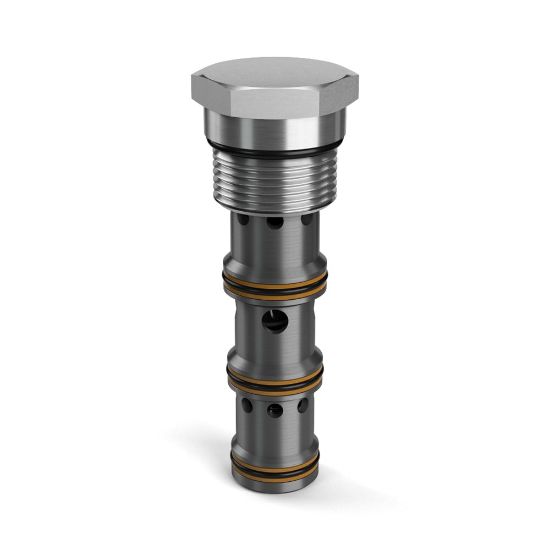

Flow Divider/Combiner Valves - L06A3-75-75V

Name: Flow Divider/Combiner Valves - L06A3-75-75V
SKU: L06A3-75-75V

Parker offers four different flow divider/combiner valves to cover a wide range of flows up to 320 lpm (85 gpm) and pressures as high as 420 bar (6,000 psi). Standard and custom ratios are available, along with optimized flow range options.

Availability:

Backordered

SKU L06A3-75-75V

POR

Qty:

Products specifications

Attribute name	Attribute value
Seal Material	Fluorocarbon	Ratio	50/50
Standard Flow Rate Setting	14.6-39.6 GAL/MIN, 55-150 L/MIN	Flow Rate	47 GAL/MIN, 180 L/MIN
Connection Type	n/a	Cavity Size	C16-4
Maximum Inlet Pressure Rating	420 bar	Maximum Flow Rate	180 L/min
Seal Material	Fluorocarbon	Configuration	n/a
Operating Temperature	-26 to +204 °C	Connection Size	n/a
Minimum Operating Temperature	-15 °F	Valve Material	All parts steel. All operating parts hardened steel
Ratio	50/50	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Flow Rate Accuracy	10%	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Installation Torque	74 lb-ft	Body Material	n/a
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Maximum Operating Temperature	+204 °C
Operation Type	Automatic	Maximum Operating Pressure	420 bar
Flow Rate	180 L/min	Standard Flow Rate Setting	55-150 L/min
Actuation Type	Interlocking Spools	Division	Hydraulic Cartridge Systems Division
Function	Flow Divider/Combiner	Division	Mobile Hydraulic Systems Division Europe
Weight	0.4 kg
