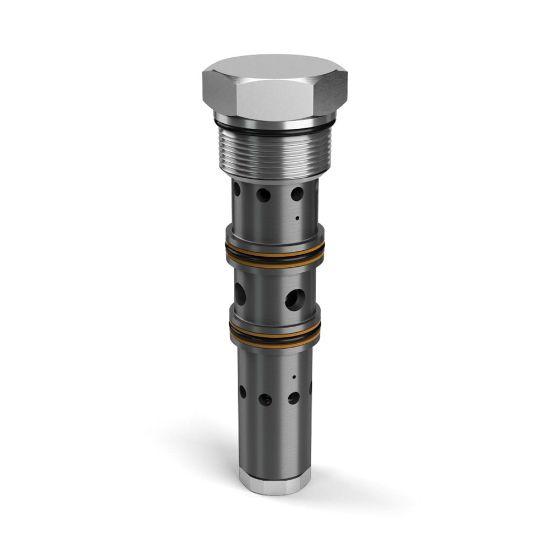

Flow Divider/Combiner Valves - L1A3001505050V

Name: Flow Divider/Combiner Valves - L1A3001505050V
SKU: L1A3001505050V

Parker offers four different flow divider/combiner valves to cover a wide range of flows up to 320 lpm (85 gpm) and pressures as high as 420 bar (6,000 psi). Standard and custom ratios are available, along with optimized flow range options.

Availability:

Backordered

SKU L1A3001505050V

POR

Qty:

Products specifications

Attribute name	Attribute value
Ratio	50/50	Flow Rate	85 GAL/MIN, 320 L/MIN
Seal Material	Fluorocarbon	Standard Flow Rate Setting	15.9-39.7 GAL/MIN, 60-150 L/MIN
Valve Material	All parts steel. All operating parts hardened steel	Ratio	50/50
Flow Rate Accuracy	10%	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Cavity Size	91-1	Connection Type	n/a
Standard Flow Rate Setting	15.9-39.7 Gal/min	Operation Type	Automatic
Minimum Operating Temperature	-26 °C	Connection Size	n/a
Flow Rate	85 Gal/min	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Maximum Operating Temperature	+400 °F	Installation Torque	150 Nm
Maximum Inlet Pressure Rating	5000 psi	Function	Flow Divider/Combiner
Division	Mobile Hydraulic Systems Division Europe	Body Material	n/a
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Maximum Flow Rate	320 L/min
Weight	2.2 lb	Operating Temperature	-15 to +400 °F
Seal Material	Fluorocarbon	Configuration	n/a
Maximum Operating Pressure	350 bar	Actuation Type	Interlocking Spools
Division	Hydraulic Cartridge Systems Division
