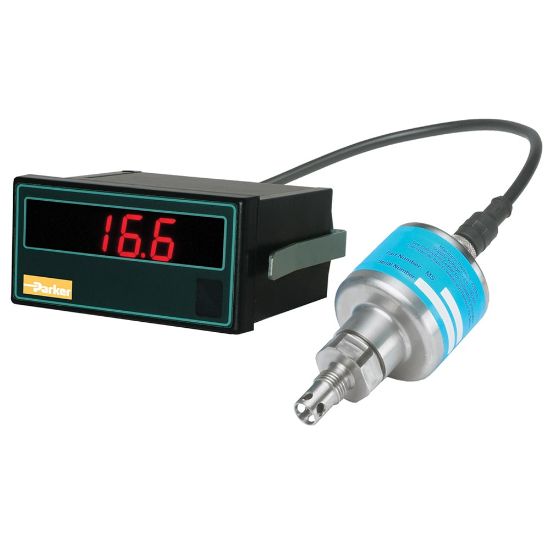

Fluid Moisture Sensor – iCountMS Range - MS2202610

Name: Fluid Moisture Sensor – iCountMS Range - MS2202610
SKU: MS2202610

Note: This product is no longer available - please refer to the “Related Products” section of this page for alternative products, or contact us for further assistance.

Availability:

Backordered

SKU MS2202610

POR

Qty:

Products specifications

Attribute name	Attribute value
Signal Output	0-5 Vdc	Port Size	n/a
Options	Programmable	Port Type	n/a
Fluid Type	Petroleum, Synthetic Oils	Ingress Protection Rating	IP67
Accuracy	+/- 5 %	Division	Hydraulic & Industrial Process Filtration Division EMEA
Electrical Requirements	8 to 30 VDC	Weight	300 g
For Fluid Type	Synthetic Oils	Brand	PARKER
Materials of Construction	Stainless Steel 303	Body Material	Stainless Steel 303
Maximum Fluid Temperature	85 °C	Connection Size	M12X1 - 8 way
Product Style	Moisture Sensor	Sensing Method	Relative Humidity RH cell %
Technology	Hydraulics	Specifications Met	CE Certification
Minimum Fluid Temperature	-40 °C	Product Type	Condition Monitor
Operating Temperature	-40 to 85 °C	Application	Ground Support Vehicles
Seal Material	Fluorocarbon	Operating Pressure	420 bar
Industry	Marine	Length	106 mm
Product Series	iCountMS	Diameter	50 mm
Division	Hydraulic & Industrial Process Filtration Division EMEA	Width	50 mm
Height	50 mm
