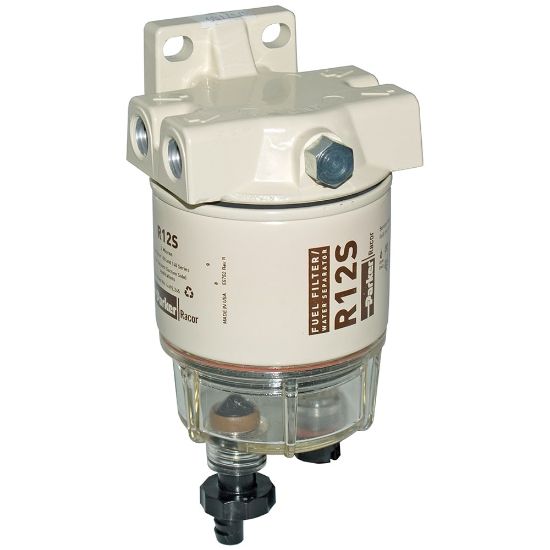

Picture of Fuel Filter Water Separator – Racor Spin-on Series - 120AS

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Fuel Filter Water Separator – Racor Spin-on Series - 120AS

Racor Spin-on Series Fuel Filter Water Separators provide maximum protection of modern engines by effectively removing water, sand, dirt, and rust contamination from fuel. Integral priming pump and fuel heater available as an option.
Availability:
Backordered
SKU 120AS
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
LocationNorth America and EMEA regionsMicron Rating98% @ 4 Micron
Product SeriesDiesel Spin-on 100MountingBracket Included
Bowl TypeStandard, Clear Engineering PlasticFlow Rate15 gph (57 lph)
Part TypeFilter AssemblyPort Size1/4" NPTF
Bowl MaterialClear Engineering PlasticHeater Power RatingNo Heater
Integral Primer Pump IncludedNo PumpDivisionEngine Mobile Original Equipment Division
BrandRacorWeight1.2 lb / 0.5 Kg
Maximum Operating Pressure7Product TypeDiesel Spin-on FF/WS
Depth3.2Width3.2
Height6.5Head MaterialAluminium Alloy
For Fluid TypeDiesel and GasolineNumber of Ports2 Inlet / 2 Outlet
Compatible ElementR12S = "2" Micron<br/>R12T = 10 Micron<br/>R12P = 30 MicronClean Pressure Drop0.15
Filter Element Type2 Micron Aquabloc Spin-onAccessories IncludedSee Product Support Tab
Operating Temperature-40 to 250Maximum Fluid Temperature190.0
Product resources

Literature and Reference Materials

Distributor Support, Literature and Reference Materials, Selector Guides
