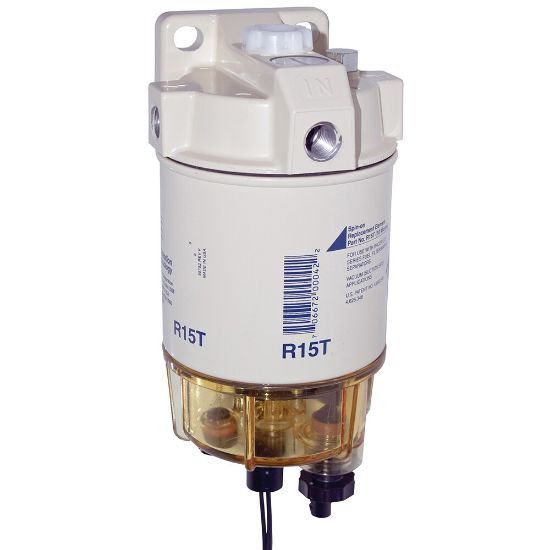

Fuel Filter Water Separator – Racor Spin-on Series - 215R1210

Name: Fuel Filter Water Separator – Racor Spin-on Series - 215R1210
SKU: 215R1210

Racor Spin-on Series Fuel Filter Water Separators provide maximum protection of modern engines by effectively removing water, sand, dirt, and rust contamination from fuel. Integral priming pump and fuel heater available as an option.

Availability:

Backordered

SKU 215R1210

POR

Qty:

Products specifications

Attribute name	Attribute value
Location	North America and EMEA regions	Micron Rating	98% @ 10 Micron
Mounting	Bracket Included	Bowl Type	Standard, Clear Engineering Plastic
Flow Rate	15 gph (57 lph)	Part Type	Filter Assembly
Port Size	1/4" NPTF	Bowl Material	Clear Engineering Plastic
Product Series	Diesel Spin-on 200	Heater Power Rating	12V / 300W (Diesel Only)
Integral Primer Pump Included	Hand Plunger Priming Pump (Diesel or Gasoline)	Division	Engine Mobile Original Equipment Division
Brand	Racor	Operating Temperature	-40 to 121 °C
Product Type	Diesel Spin-on FF/WS	Head Material	Aluminium Alloy
Filter Element Type	10 Micron Aquabloc Spin-on	Accessories Included	See Product Support Tab
Weight	1.8 lb / 0.80 Kg	Maximum Operating Pressure	207.0 kPa
Depth	102.0 mm	Width	102.0 mm
Height	8.3 inch	For Fluid Type	Diesel
Number of Ports	1 Inlet / 2 Outlet	Compatible Element	R15S = "2" Micron<br/>R15T = 10 Micron<br/>R15P = 30 Micron
Clean Pressure Drop	0.12 psi	Maximum Fluid Temperature	190.0 °F
