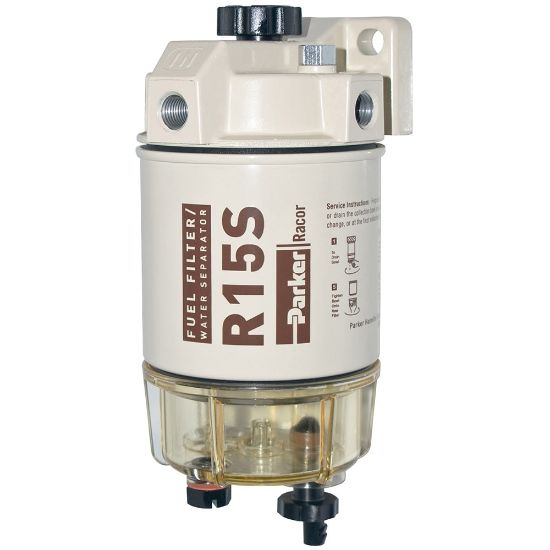

Picture of Fuel Filter Water Separator – Racor Spin-on Series - 215R2

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Fuel Filter Water Separator – Racor Spin-on Series - 215R2

Racor Spin-on Series Fuel Filter Water Separators provide maximum protection of modern engines by effectively removing water, sand, dirt, and rust contamination from fuel. Integral priming pump and fuel heater available as an option.
Availability:
Backordered
SKU 215R2
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
LocationNorth America and EMEA regionsMicron Rating98% @ 4 Micron
MountingBracket IncludedBowl TypeStandard, Clear Engineering Plastic
Flow Rate15 gph (57 lph)Part TypeFilter Assembly
Port Size1/4" NPTFBowl MaterialClear Engineering Plastic
Heater Power RatingNo HeaterProduct SeriesDiesel Spin-on 200
Integral Primer Pump IncludedHand Plunger Priming Pump (Diesel or Gasoline)DivisionEngine Mobile Original Equipment Division
BrandRacorOperating Temperature-40 to 121 °C
Product TypeDiesel Spin-on FF/WSHead MaterialAluminium Alloy
For Fluid TypeDiesel and GasolineFilter Element Type2 Micron Aquabloc Spin-on
Accessories IncludedSee Product Support TabWeight1.8 lb / 0.80 Kg
Maximum Operating Pressure207.0 kPaDepth102.0 mm
Width102.0 mmHeight211.0 mm
Number of Ports1 Inlet / 2 OutletCompatible ElementR15S = "2" Micron<br/>R15T = 10 Micron<br/>R15P = 30 Micron
Clean Pressure Drop0.12 psiMaximum Fluid Temperature190.0 °F
Product resources

Distributor Support, Literature and Reference Materials, Selector Guides

Literature and Reference Materials
