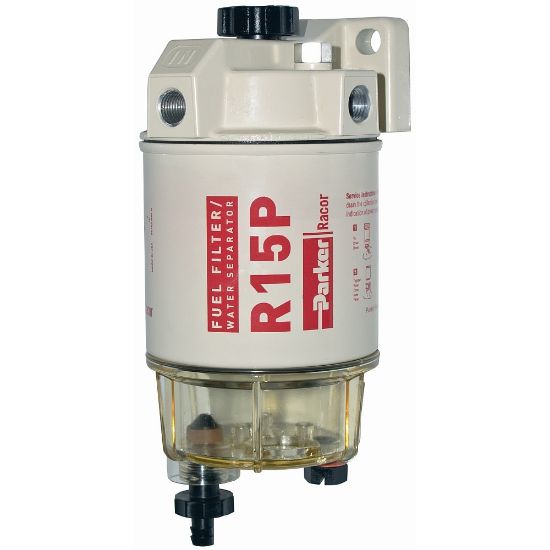

Fuel Filter Water Separator – Racor Spin-on Series - 215R30

Name: Fuel Filter Water Separator – Racor Spin-on Series - 215R30
SKU: 215R30

Racor Spin-on Series Fuel Filter Water Separators provide maximum protection of modern engines by effectively removing water, sand, dirt, and rust contamination from fuel. Integral priming pump and fuel heater available as an option.

Availability:

Backordered

SKU 215R30

POR

Qty:

Products specifications

Attribute name	Attribute value
Location	North America and EMEA regions	Micron Rating	98% @ 30 Micron
Mounting	Bracket Included	Bowl Type	Standard, Clear Engineering Plastic
Flow Rate	15 gph (57 lph)	Part Type	Filter Assembly
Port Size	1/4" NPTF	Bowl Material	Clear Engineering Plastic
Heater Power Rating	No Heater	Product Series	Diesel Spin-on 200
Integral Primer Pump Included	Hand Plunger Priming Pump (Diesel or Gasoline)	Division	Engine Mobile Original Equipment Division
Brand	Racor	Operating Temperature	-40 to 250 °F
Product Type	Diesel Spin-on FF/WS	Head Material	Aluminium Alloy
For Fluid Type	Diesel and Gasoline	Filter Element Type	30 Micron Aquabloc Spin-on
Accessories Included	See Product Support Tab	Weight	1.8 lb / 0.80 Kg
Maximum Operating Pressure	30 psi	Depth	102.0 mm
Width	4 inch	Height	211.0 mm
Number of Ports	1 Inlet / 2 Outlet	Compatible Element	R15S = "2" Micron<br/>R15T = 10 Micron<br/>R15P = 30 Micron
Clean Pressure Drop	0.12 psi	Maximum Fluid Temperature	190.0 °F

Product resources

Distributor Support, Literature and Reference Materials, Selector Guides

Racor--200 Diesel Spin-on--RSL0376 (PDF)

Literature and Reference Materials
