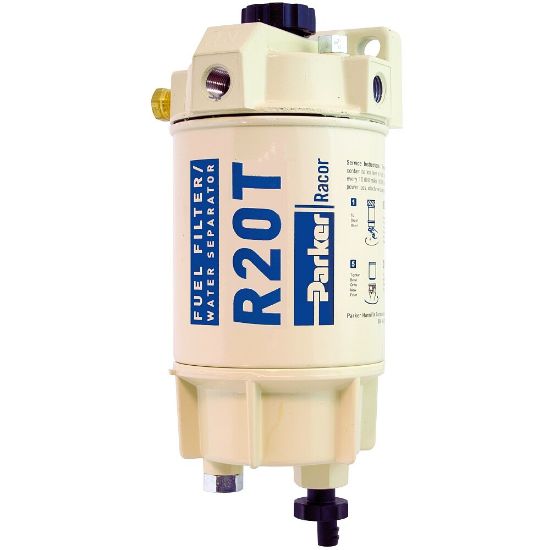

Fuel Filter Water Separator – Racor Spin-on Series - 230RM10MTC

Name: Fuel Filter Water Separator – Racor Spin-on Series - 230RM10MTC
SKU: 230RM10MTC

Racor Spin-on Series Fuel Filter Water Separators provide maximum protection of modern engines by effectively removing water, sand, dirt, and rust contamination from fuel. Integral priming pump and fuel heater available as an option.

Availability:

Backordered

SKU 230RM10MTC

POR

Qty:

Products specifications

Attribute name	Attribute value
Micron Rating	98% @ 10 Micron	Mounting	Bracket Included
Part Type	Filter Assembly	Heater Power Rating	No Heater
Location	EMEA region only	Bowl Type	Standard, Aluminium Alloy
Port Size	M14 1.5 SAE	Product Series	Diesel Spin-on 200
Integral Primer Pump Included	Hand Plunger Priming Pump (Diesel or Gasoline)	Flow Rate	30 gph (114 lph)
Bowl Material	Aluminium Alloy	Division	Engine Mobile Original Equipment Division
Brand	Racor	Maximum Operating Pressure	30
Product Type	Diesel Spin-on FF/WS	Head Material	Aluminium Alloy
For Fluid Type	Diesel and Gasoline	Filter Element Type	10 Micron Aquabloc Spin-on
Accessories Included	See Product Support Tab	Operating Temperature	-40 to 250
Maximum Fluid Temperature	190.0	Depth	4
Width	4	Number of Ports	1 Inlet / 2 Outlet
Height	9	Weight	2 lb / 0.90 Kg
Compatible Element	R20S = "2" Micron<br/>R20T = 10 Micron<br/>R20P = 30 Micron	Clean Pressure Drop	0.31
