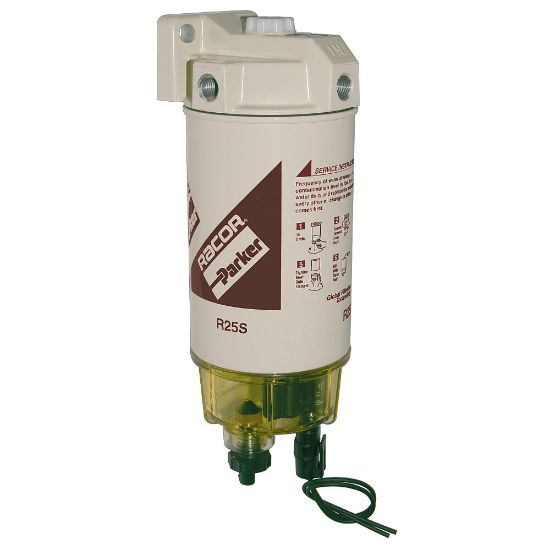

Fuel Filter Water Separator – Racor Spin-on Series - 245R122

Name: Fuel Filter Water Separator – Racor Spin-on Series - 245R122
SKU: 245R122

Racor Spin-on Series Fuel Filter Water Separators provide maximum protection of modern engines by effectively removing water, sand, dirt, and rust contamination from fuel. Integral priming pump and fuel heater available as an option.

Availability:

Backordered

SKU 245R122

POR

Qty:

Products specifications

Attribute name	Attribute value
Location	North America and EMEA regions	Micron Rating	98% @ 4 Micron
Mounting	Bracket Included	Bowl Type	Standard, Clear Engineering Plastic
Part Type	Filter Assembly	Port Size	1/4" NPTF
Bowl Material	Clear Engineering Plastic	Product Series	Diesel Spin-on 200
Heater Power Rating	12V / 300W (Diesel Only)	Integral Primer Pump Included	Hand Plunger Priming Pump (Diesel or Gasoline)
Flow Rate	45 gph (170 lph)	Division	Engine Mobile Original Equipment Division
Brand	Racor	Operating Temperature	-40 to 121 °C
Product Type	Diesel Spin-on FF/WS	Head Material	Aluminium Alloy
Filter Element Type	2 Micron Aquabloc Spin-on	Accessories Included	See Product Support Tab
Maximum Operating Pressure	30 psi	Depth	4 inch
Width	4 inch	For Fluid Type	Diesel
Number of Ports	1 Inlet / 2 Outlet	Maximum Fluid Temperature	88.0 °C
Height	267.0 mm	Weight	2.2 lb / 1 Kg
Compatible Element	R25S = "2" Micron<br/>R25T = 10 Micron<br/>R25P = 30 Micron	Clean Pressure Drop	4.21 kPa

Product resources

Distributor Support, Literature and Reference Materials, Selector Guides

Racor--200 Diesel Spin-on--RSL0376 (PDF)
