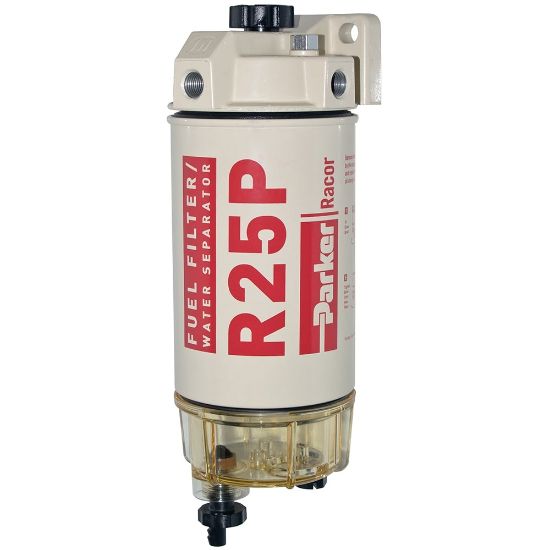

Fuel Filter Water Separator – Racor Spin-on Series - 245R30MTC

Name: Fuel Filter Water Separator – Racor Spin-on Series - 245R30MTC
SKU: 245R30MTC

Racor Spin-on Series Fuel Filter Water Separators provide maximum protection of modern engines by effectively removing water, sand, dirt, and rust contamination from fuel. Integral priming pump and fuel heater available as an option.

Availability:

Backordered

SKU 245R30MTC

POR

Qty:

Products specifications

Attribute name	Attribute value
Micron Rating	98% @ 30 Micron	Mounting	Bracket Included
Bowl Type	Standard, Clear Engineering Plastic	Part Type	Filter Assembly
Bowl Material	Clear Engineering Plastic	Heater Power Rating	No Heater
Location	EMEA region only	Port Size	M14 1.5 SAE
Product Series	Diesel Spin-on 200	Integral Primer Pump Included	Hand Plunger Priming Pump (Diesel or Gasoline)
Flow Rate	45 gph (170 lph)	Division	Engine Mobile Original Equipment Division
Brand	Racor	Operating Temperature	-40 to 121 °C
Product Type	Diesel Spin-on FF/WS	Head Material	Aluminium Alloy
For Fluid Type	Diesel and Gasoline	Filter Element Type	30 Micron Aquabloc Spin-on
Accessories Included	See Product Support Tab	Maximum Operating Pressure	207.0 kPa
Depth	102.0 mm	Width	102.0 mm
Number of Ports	1 Inlet / 2 Outlet	Maximum Fluid Temperature	190.0 °F
Height	267.0 mm	Weight	2.2 lb / 1 Kg
Compatible Element	R25S = "2" Micron<br/>R25T = 10 Micron<br/>R25P = 30 Micron	Clean Pressure Drop	4.21 kPa
