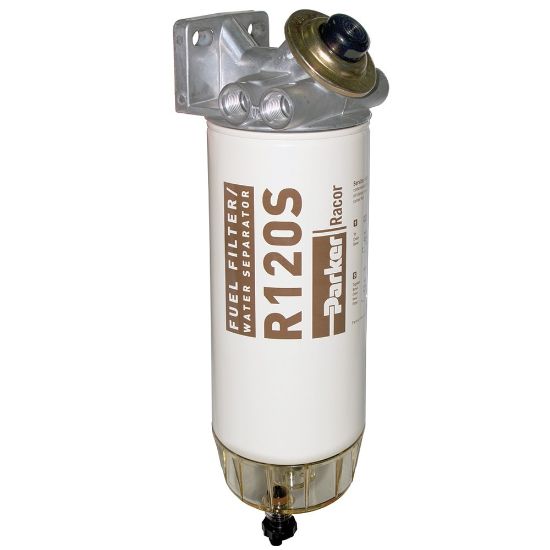

Fuel Filter Water Separator – Racor Spin-on Series - 4120R2

Name: Fuel Filter Water Separator – Racor Spin-on Series - 4120R2
SKU: 4120R2

Racor Spin-on Series Fuel Filter Water Separators provide maximum protection of modern engines by effectively removing water, sand, dirt, and rust contamination from fuel. Integral priming pump and fuel heater available as an option.

Availability:

Backordered

SKU 4120R2

POR

Qty:

Products specifications

Attribute name	Attribute value
Location	North America and EMEA regions	Micron Rating	98% @ 4 Micron
Mounting	Bracket Included	Part Type	Filter Assembly
Bowl Material	Clear Engineering Plastic	Heater Power Rating	No Heater
Bowl Type	Deep Bowl, Clear Engineering Plastic	Product Series	Diesel Spin-on 400
Flow Rate	120 gph (454 lph)	Port Size	3/4"-16 SAE (SAE J1926)
Integral Primer Pump Included	Button Priming Pump (Diesel)	Division	Engine Mobile Original Equipment Division
Brand	Racor	Product Type	Diesel Spin-on FF/WS
Head Material	Aluminium Alloy	Number of Ports	2 Inlet / 2 Outlet
Filter Element Type	2 Micron Aquabloc Spin-on	Accessories Included	See Product Support Tab
Operating Temperature	-40 to 250	Maximum Fluid Temperature	190.0
For Fluid Type	Diesel	Maximum Operating Pressure	15
Weight	3.9 lb / 1.8 Kg	Compatible Element	R120S = "2" Micron<br/>R120T = 10 Micron<br/>R120P = 30 Micron
Width	4.5	Depth	4.8
Height	15	Clean Pressure Drop	0.85

Product resources

Literature and Reference Materials, Selector Guides

Racor--400 Diesel Spin-on--RSL0366 (PDF)

Literature and Reference Materials
