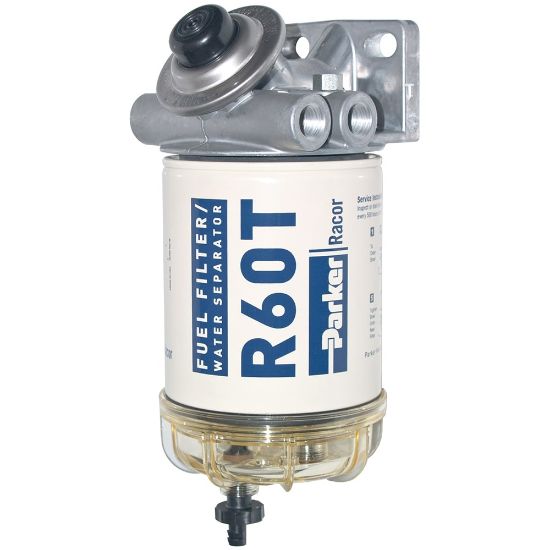

Fuel Filter Water Separator – Racor Spin-on Series - 460R10MTC

Name: Fuel Filter Water Separator – Racor Spin-on Series - 460R10MTC
SKU: 460R10MTC

Racor Spin-on Series Fuel Filter Water Separators provide maximum protection of modern engines by effectively removing water, sand, dirt, and rust contamination from fuel. Integral priming pump and fuel heater available as an option.

Availability:

Backordered

SKU 460R10MTC

POR

Qty:

Products specifications

Attribute name	Attribute value
Micron Rating	98% @ 10 Micron	Mounting	Bracket Included
Bowl Type	Standard, Clear Engineering Plastic	Part Type	Filter Assembly
Bowl Material	Clear Engineering Plastic	Heater Power Rating	No Heater
Location	EMEA region only	Product Series	Diesel Spin-on 400
Port Size	M16 1.5 SAE	Integral Primer Pump Included	Button Priming Pump (Diesel)
Flow Rate	160 gph (600 lph)	Division	Engine Mobile Original Equipment Division
Brand	Racor	Operating Temperature	-40 to 250 °F
Product Type	Diesel Spin-on FF/WS	Head Material	Aluminium Alloy
Number of Ports	2 Inlet / 2 Outlet	Filter Element Type	10 Micron Aquabloc Spin-on
Accessories Included	See Product Support Tab	Maximum Operating Pressure	207.0 kPa
For Fluid Type	Diesel	Maximum Fluid Temperature	88.0 °C
Width	4.5 inch	Depth	121.0 mm
Compatible Element	R60S = "2" Micron<br/>R60T = 10 Micron<br/>R60P = 30 Micron	Weight	1.3 kg
Height	279.0 mm	Clean Pressure Drop	2.7 kPa

Product resources

Literature and Reference Materials
