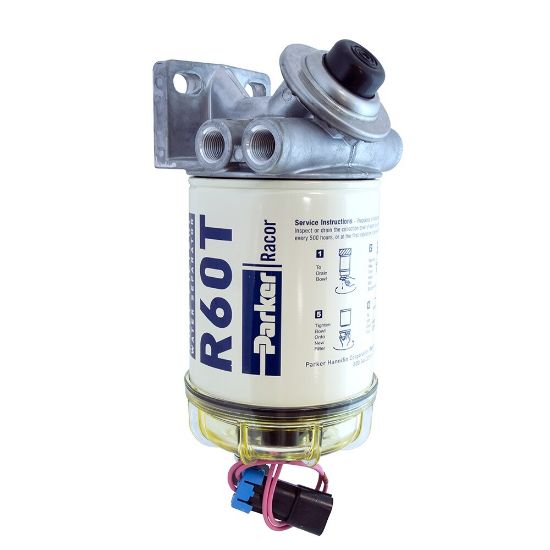

Fuel Filter Water Separator – Racor Spin-on Series - 460R2410

Name: Fuel Filter Water Separator – Racor Spin-on Series - 460R2410
SKU: 460R2410

Racor Spin-on Series Fuel Filter Water Separators provide maximum protection of modern engines by effectively removing water, sand, dirt, and rust contamination from fuel. Integral priming pump and fuel heater available as an option.

Availability:

Backordered

SKU 460R2410

POR

Qty:

Products specifications

Attribute name	Attribute value
Location	North America and EMEA regions	Micron Rating	98% @ 10 Micron
Mounting	Bracket Included	Bowl Type	Standard, Clear Engineering Plastic
Part Type	Filter Assembly	Bowl Material	Clear Engineering Plastic
Heater Power Rating	24V / 200W (Diesel Only)	Flow Rate	60 gph (227 lph)
Port Size	3/8"-18 NPTF (SAE J476)	Product Series	Diesel Spin-on 400
Integral Primer Pump Included	Button Priming Pump (Diesel)	Division	Engine Mobile Original Equipment Division
Brand	Racor	Maximum Operating Pressure	30
Product Type	Diesel Spin-on FF/WS	Head Material	Aluminium Alloy
Number of Ports	2 Inlet / 2 Outlet	Filter Element Type	10 Micron Aquabloc Spin-on
Accessories Included	See Product Support Tab	Operating Temperature	-40 to 250
Maximum Fluid Temperature	190.0	Weight	2.7
For Fluid Type	Diesel	Height	11
Clean Pressure Drop	0.39	Width	4.5
Depth	4.8	Compatible Element	R60S = "2" Micron<br/>R60T = 10 Micron<br/>R60P = 30 Micron

Product resources

Literature and Reference Materials, Selector Guides

Racor--400 Diesel Spin-on--RSL0366 (PDF)

Literature and Reference Materials
