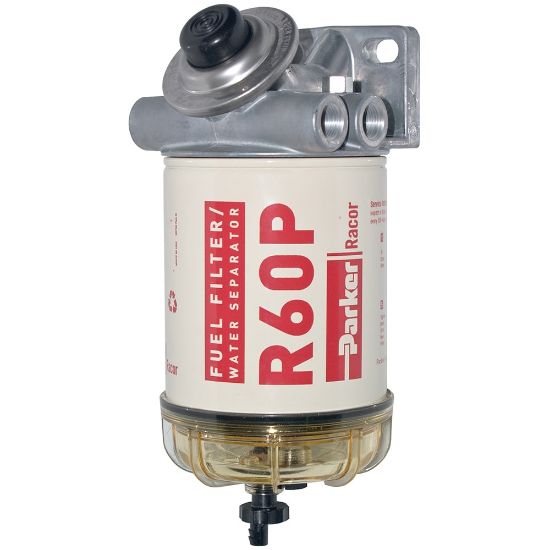

Fuel Filter Water Separator – Racor Spin-on Series - 460R30MTC

Name: Fuel Filter Water Separator – Racor Spin-on Series - 460R30MTC
SKU: 460R30MTC

Racor Spin-on Series Fuel Filter Water Separators provide maximum protection of modern engines by effectively removing water, sand, dirt, and rust contamination from fuel. Integral priming pump and fuel heater available as an option.

Availability:

Backordered

SKU 460R30MTC

POR

Qty:

Products specifications

Attribute name	Attribute value
Micron Rating	98% @ 30 Micron	Mounting	Bracket Included
Bowl Type	Standard, Clear Engineering Plastic	Part Type	Filter Assembly
Bowl Material	Clear Engineering Plastic	Heater Power Rating	No Heater
Location	EMEA region only	Flow Rate	60 gph (227 lph)
Product Series	Diesel Spin-on 400	Port Size	M16 1.5 SAE
Integral Primer Pump Included	Button Priming Pump (Diesel)	Division	Engine Mobile Original Equipment Division
Brand	Racor	Maximum Operating Pressure	30
Product Type	Diesel Spin-on FF/WS	Head Material	Aluminium Alloy
Number of Ports	2 Inlet / 2 Outlet	Filter Element Type	30 Micron Aquabloc Spin-on
Accessories Included	See Product Support Tab	Operating Temperature	-40 to 250
Maximum Fluid Temperature	190.0	Weight	2.7
For Fluid Type	Diesel	Height	11
Clean Pressure Drop	0.39	Width	4.5
Depth	4.8	Compatible Element	R60S = "2" Micron<br/>R60T = 10 Micron<br/>R60P = 30 Micron
