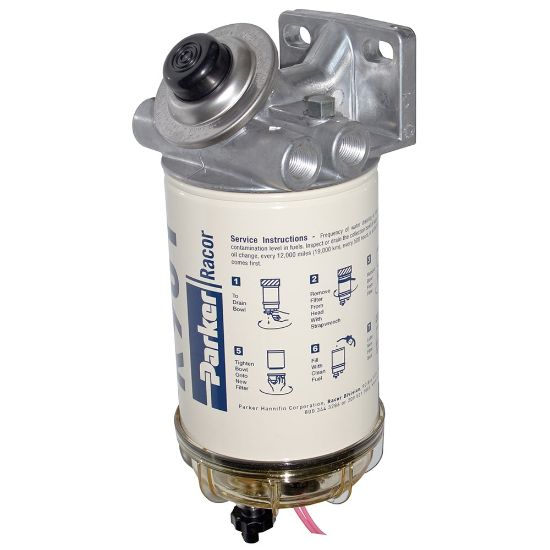

Fuel Filter Water Separator – Racor Spin-on Series - 490R1210MTC

Name: Fuel Filter Water Separator – Racor Spin-on Series - 490R1210MTC
SKU: 490R1210MTC

Racor Spin-on Series Fuel Filter Water Separators provide maximum protection of modern engines by effectively removing water, sand, dirt, and rust contamination from fuel. Integral priming pump and fuel heater available as an option.

Availability:

Backordered

SKU 490R1210MTC

POR

Qty:

Products specifications

Attribute name	Attribute value
Micron Rating	98% @ 10 Micron	Mounting	Bracket Included
Bowl Type	Standard, Clear Engineering Plastic	Part Type	Filter Assembly
Bowl Material	Clear Engineering Plastic	Location	EMEA region only
Heater Power Rating	12V / 300W (Diesel Only)	Product Series	Diesel Spin-on 400
Port Size	M16 1.5 SAE	Integral Primer Pump Included	Button Priming Pump (Diesel)
Flow Rate	90 gph (341 lph)	Division	Engine Mobile Original Equipment Division
Brand	Racor	Maximum Operating Pressure	30
Product Type	Diesel Spin-on FF/WS	Head Material	Aluminium Alloy
Number of Ports	2 Inlet / 2 Outlet	Filter Element Type	10 Micron Aquabloc Spin-on
Accessories Included	See Product Support Tab	Operating Temperature	-40 to 250
Maximum Fluid Temperature	190.0	For Fluid Type	Diesel
Width	4.5	Depth	4.8
Height	11.8	Weight	2.9
Compatible Element	R90S = "2" Micron<br/>R90T = 10 Micron<br/>R90P = 30 Micron	Clean Pressure Drop	0.95
