Fuel Filter Water Separator – Racor Spin-on Series - 490R1230

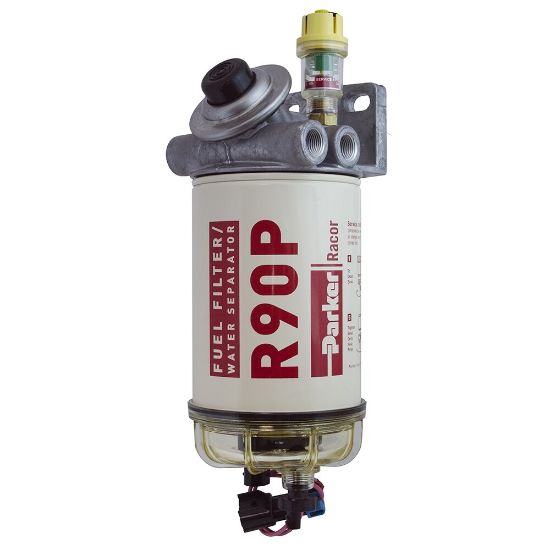

Name: Fuel Filter Water Separator – Racor Spin-on Series - 490R1230
SKU: 490R1230

Racor Spin-on Series Fuel Filter Water Separators provide maximum protection of modern engines by effectively removing water, sand, dirt, and rust contamination from fuel. Integral priming pump and fuel heater available as an option.

Availability:

Backordered

SKU 490R1230

POR

Qty:

Products specifications

Attribute name	Attribute value
Location	North America and EMEA regions	Micron Rating	98% @ 30 Micron
Mounting	Bracket Included	Bowl Type	Standard, Clear Engineering Plastic
Part Type	Filter Assembly	Bowl Material	Clear Engineering Plastic
Heater Power Rating	12V / 300W (Diesel Only)	Port Size	3/8"-18 NPTF (SAE J476)
Product Series	Diesel Spin-on 400	Integral Primer Pump Included	Button Priming Pump (Diesel)
Flow Rate	90 gph (341 lph)	Division	Engine Mobile Original Equipment Division
Brand	Racor	Operating Temperature	-40 to 250 °F
Product Type	Diesel Spin-on FF/WS	Head Material	Aluminium Alloy
Number of Ports	2 Inlet / 2 Outlet	Filter Element Type	30 Micron Aquabloc Spin-on
Accessories Included	See Product Support Tab	Maximum Operating Pressure	207.0 kPa
For Fluid Type	Diesel	Maximum Fluid Temperature	190.0 °F
Width	4.5 inch	Depth	121.0 mm
Height	300.0 mm	Weight	1.4 kg
Compatible Element	R90S = "2" Micron<br/>R90T = 10 Micron<br/>R90P = 30 Micron	Clean Pressure Drop	0.95 psi

Product resources

Literature and Reference Materials, Selector Guides

Racor--400 Diesel Spin-on--RSL0366 (PDF)

Literature and Reference Materials
