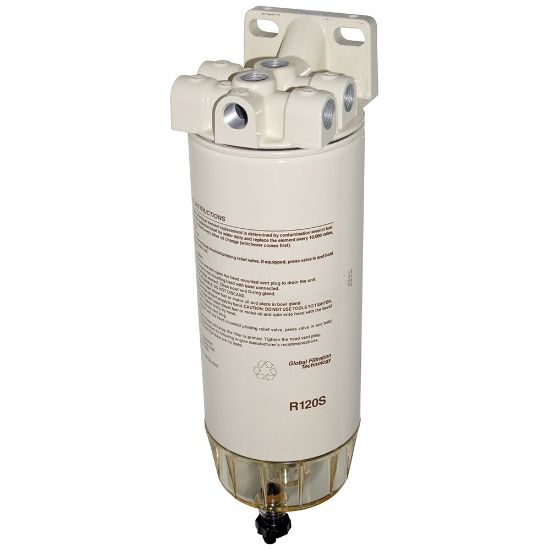

Fuel Filter Water Separator – Racor Spin-on Series - 6120R2

Name: Fuel Filter Water Separator – Racor Spin-on Series - 6120R2
SKU: 6120R2

Racor Spin-on Series Fuel Filter Water Separators provide maximum protection of modern engines by effectively removing water, sand, dirt, and rust contamination from fuel. Integral priming pump and fuel heater available as an option.

Availability:

Backordered

SKU 6120R2

POR

Qty:

Products specifications

Attribute name	Attribute value
Location	North America and EMEA regions	Micron Rating	98% @ 4 Micron
Mounting	Bracket Included	Part Type	Filter Assembly
Bowl Material	Clear Engineering Plastic	Heater Power Rating	No Heater
Integral Primer Pump Included	No Pump	Bowl Type	Deep Bowl, Clear Engineering Plastic
Port Size	3/8"-18 NPTF (SAE J476)	Flow Rate	120 gph (454 lph)
Product Series	Diesel Spin-on 600	Division	Engine Mobile Original Equipment Division
Brand	Racor	Product Type	Diesel Spin-on FF/WS
Head Material	Aluminium Alloy	For Fluid Type	Diesel and Gasoline
Number of Ports	2 Inlet / 2 Outlet	Filter Element Type	2 Micron Aquabloc Spin-on
Accessories Included	See Product Support Tab	Operating Temperature	-40 to 250
Maximum Fluid Temperature	190.0	Maximum Operating Pressure	15
Compatible Element	R120S = "2" Micron<br/>R120T = 10 Micron<br/>R120P = 30 Micron	Weight	1.8
Depth	114.0	Width	114.0
Height	358.0	Clean Pressure Drop	2.65

Product resources

Literature and Reference Materials, Selector Guides

Racor--600 Diesel Spin-on--RSL0367 (PDF)

Literature and Reference Materials
