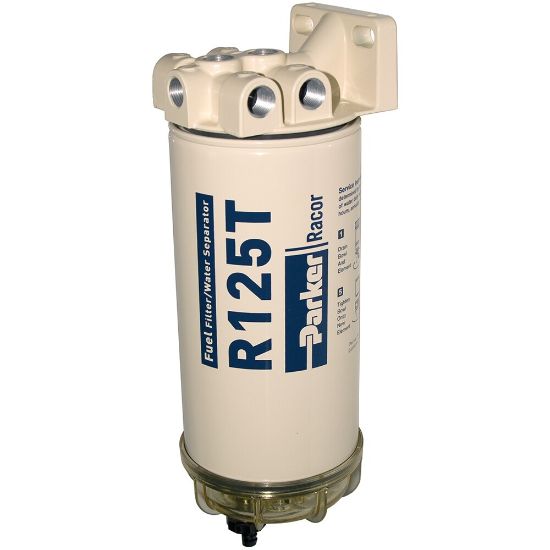

Fuel Filter Water Separator – Racor Spin-on Series - 6125R10

Name: Fuel Filter Water Separator – Racor Spin-on Series - 6125R10
SKU: 6125R10

Racor Spin-on Series Fuel Filter Water Separators provide maximum protection of modern engines by effectively removing water, sand, dirt, and rust contamination from fuel. Integral priming pump and fuel heater available as an option.

Availability:

Backordered

SKU 6125R10

POR

Qty:

Products specifications

Attribute name	Attribute value
Location	North America and EMEA regions	Micron Rating	98% @ 10 Micron
Mounting	Bracket Included	Bowl Type	Standard, Clear Engineering Plastic
Part Type	Filter Assembly	Bowl Material	Clear Engineering Plastic
Heater Power Rating	No Heater	Integral Primer Pump Included	No Pump
Port Size	3/8"-18 NPTF (SAE J476)	Flow Rate	120 gph (454 lph)
Product Series	Diesel Spin-on 600	Division	Engine Mobile Original Equipment Division
Brand	Racor	Product Type	Diesel Spin-on FF/WS
Head Material	Aluminium Alloy	For Fluid Type	Diesel and Gasoline
Number of Ports	2 Inlet / 2 Outlet	Filter Element Type	10 Micron Aquabloc Spin-on
Accessories Included	See Product Support Tab	Operating Temperature	-40 to 250
Maximum Fluid Temperature	190.0	Maximum Operating Pressure	15
Compatible Element	R125S = "2" Micron<br/>R125T = 10 Micron<br/>R125P = 30 Micron	Weight	1.8
Depth	114.0	Width	114.0
Height	358.0	Clean Pressure Drop	2.65

Product resources

Literature and Reference Materials
