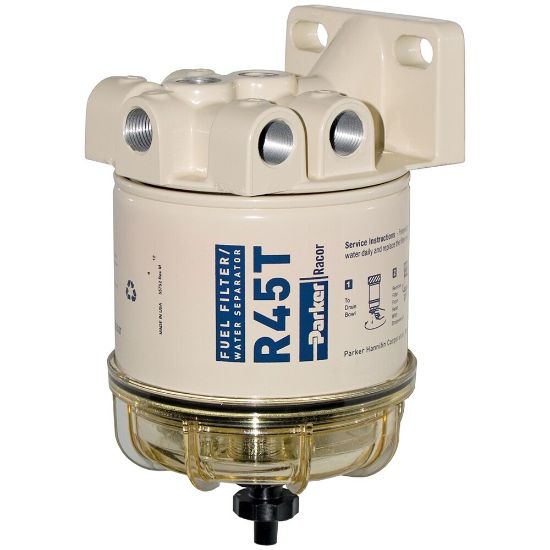

Fuel Filter Water Separator – Racor Spin-on Series - 645R10

Name: Fuel Filter Water Separator – Racor Spin-on Series - 645R10
SKU: 645R10

Racor Spin-on Series Fuel Filter Water Separators provide maximum protection of modern engines by effectively removing water, sand, dirt, and rust contamination from fuel. Integral priming pump and fuel heater available as an option.

Availability:

Backordered

SKU 645R10

POR

Qty:

Products specifications

Attribute name	Attribute value
Micron Rating	98% @ 10 Micron	Port Size	3/8"-18 NPTF (SAE J476)
Part Type	Filter Assembly	Location	North America and EMEA regions
Mounting	Bracket Included	Bowl Material	Clear Engineering Plastic
Integral Primer Pump Included	No Pump	Heater Power Rating	No Heater
Flow Rate	45 gph (170 lph)	Product Series	Diesel Spin-on 600
Bowl Type	Standard, Clear Engineering Plastic	Weight	1.07 kg
Brand	Racor	Filter Element Type	10 Micron Aquabloc Spin-on
Head Material	Aluminium Alloy	Depth	114.0 mm
Number of Ports	2 Inlet / 2 Outlet	Operating Temperature	-40 to 121 °C
Accessories Included	See Product Support Tab	Division	Engine Mobile Original Equipment Division
Maximum Operating Pressure	207.0 kPa	Compatible Element	R45S = "2" Micron<br/>R45T = 10 Micron<br/>R45P = 30 Micron
Height	215.0 mm	Maximum Fluid Temperature	190.0 °F
Clean Pressure Drop	0.07 kPa	For Fluid Type	Diesel and Gasoline
Product Type	Diesel Spin-on FF/WS	Width	4.5 inch

Product resources

Literature and Reference Materials, Selector Guides

Racor--600 Diesel Spin-on--RSL0367 (PDF)

Literature and Reference Materials
