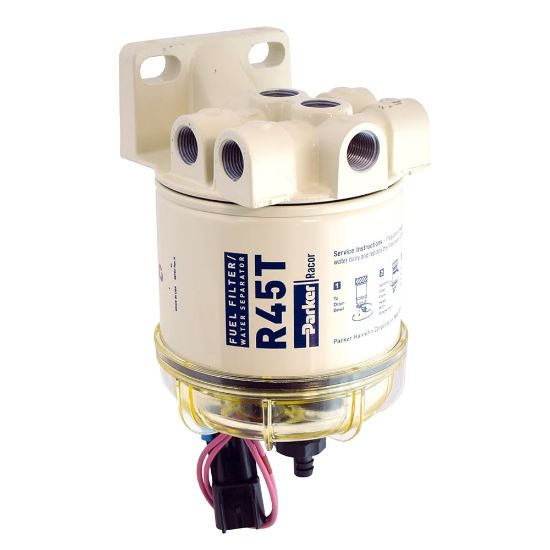

Fuel Filter Water Separator – Racor Spin-on Series - 645R1210

Name: Fuel Filter Water Separator – Racor Spin-on Series - 645R1210
SKU: 645R1210

Racor Spin-on Series Fuel Filter Water Separators provide maximum protection of modern engines by effectively removing water, sand, dirt, and rust contamination from fuel. Integral priming pump and fuel heater available as an option.

Availability:

Backordered

SKU 645R1210

POR

Qty:

Products specifications

Attribute name	Attribute value
Bowl Type	Standard, Clear Engineering Plastic	Micron Rating	98% @ 10 Micron
Port Size	3/8"-18 NPTF (SAE J476)	Heater Power Rating	12V / 300W (Diesel Only)
Part Type	Filter Assembly	Bowl Material	Clear Engineering Plastic
Location	North America and EMEA regions	Integral Primer Pump Included	No Pump
Mounting	Bracket Included	Flow Rate	45 gph (170 lph)
Product Series	Diesel Spin-on 600	Product Type	Diesel Spin-on FF/WS
Maximum Operating Pressure	30 psi	Height	8.5 inch
Weight	1.07 kg	Clean Pressure Drop	0.01 psi
Filter Element Type	10 Micron Aquabloc Spin-on	Maximum Fluid Temperature	88.0 °C
Head Material	Aluminium Alloy	Brand	Racor
Number of Ports	2 Inlet / 2 Outlet	Depth	4.5 inch
Operating Temperature	-40 to 121 °C	Accessories Included	See Product Support Tab
For Fluid Type	Diesel	Width	114.0 mm
Division	Engine Mobile Original Equipment Division	Compatible Element	R45S = "2" Micron<br/>R45T = 10 Micron<br/>R45P = 30 Micron
