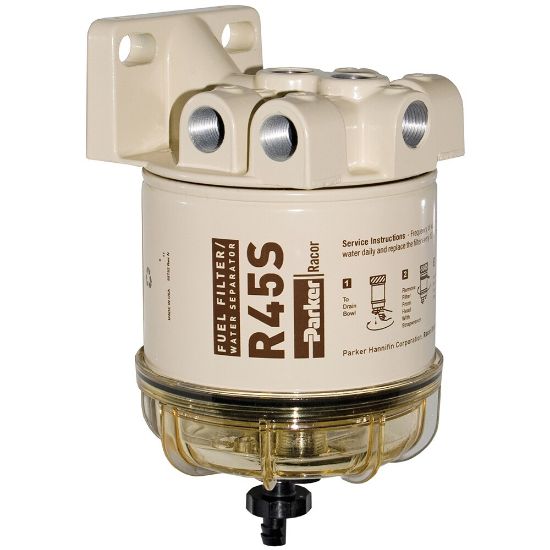

Fuel Filter Water Separator – Racor Spin-on Series - 645R2MTC

Name: Fuel Filter Water Separator – Racor Spin-on Series - 645R2MTC
SKU: 645R2MTC

Racor Spin-on Series Fuel Filter Water Separators provide maximum protection of modern engines by effectively removing water, sand, dirt, and rust contamination from fuel. Integral priming pump and fuel heater available as an option.

Availability:

Backordered

SKU 645R2MTC

POR

Qty:

Products specifications

Attribute name	Attribute value
Heater Power Rating	No Heater	Product Series	Diesel Spin-on 600
Bowl Type	Standard, Clear Engineering Plastic	Location	EMEA region only
Micron Rating	98% @ 4 Micron	Part Type	Filter Assembly
Mounting	Bracket Included	Port Size	M16 1.5 SAE
Integral Primer Pump Included	No Pump	Bowl Material	Clear Engineering Plastic
Flow Rate	45 gph (170 lph)	Depth	114.0
Maximum Operating Pressure	30	Operating Temperature	-40 to 250
Filter Element Type	2 Micron Aquabloc Spin-on	Product Type	Diesel Spin-on FF/WS
For Fluid Type	Diesel and Gasoline	Width	114.0
Brand	Racor	Head Material	Aluminium Alloy
Maximum Fluid Temperature	190.0	Number of Ports	2 Inlet / 2 Outlet
Height	215.0	Weight	1.07
Accessories Included	See Product Support Tab	Clean Pressure Drop	0.01
Compatible Element	R45S = "2" Micron<br/>R45T = 10 Micron<br/>R45P = 30 Micron	Division	Engine Mobile Original Equipment Division
