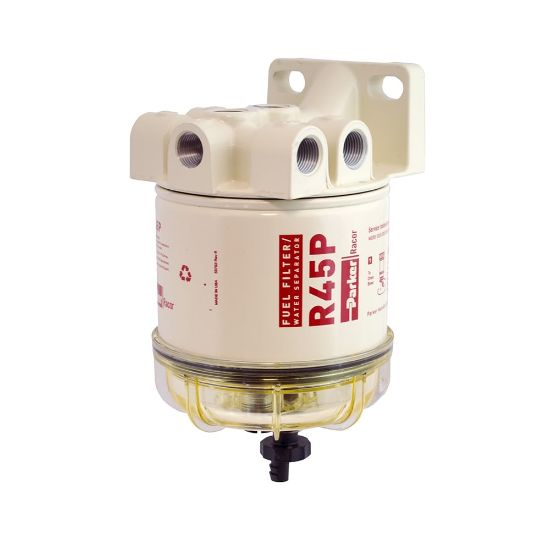

Fuel Filter Water Separator – Racor Spin-on Series - 645R30

Name: Fuel Filter Water Separator – Racor Spin-on Series - 645R30
SKU: 645R30

Racor Spin-on Series Fuel Filter Water Separators provide maximum protection of modern engines by effectively removing water, sand, dirt, and rust contamination from fuel. Integral priming pump and fuel heater available as an option.

Availability:

Backordered

SKU 645R30

POR

Qty:

Products specifications

Attribute name	Attribute value
Part Type	Filter Assembly	Location	North America and EMEA regions
Bowl Material	Clear Engineering Plastic	Integral Primer Pump Included	No Pump
Mounting	Bracket Included	Heater Power Rating	No Heater
Flow Rate	45 gph (170 lph)	Product Series	Diesel Spin-on 600
Micron Rating	98% @ 30 Micron	Bowl Type	Standard, Clear Engineering Plastic
Port Size	3/8"-18 NPTF (SAE J476)	Head Material	Aluminium Alloy
Brand	Racor	Number of Ports	2 Inlet / 2 Outlet
Depth	114.0 mm	Accessories Included	See Product Support Tab
Filter Element Type	30 Micron Aquabloc Spin-on	Division	Engine Mobile Original Equipment Division
Compatible Element	R45S = "2" Micron<br/>R45T = 10 Micron<br/>R45P = 30 Micron	Height	215.0 mm
Maximum Fluid Temperature	190.0 °F	Clean Pressure Drop	0.07 kPa
Maximum Operating Pressure	30 psi	Product Type	Diesel Spin-on FF/WS
Width	4.5 inch	For Fluid Type	Diesel and Gasoline
Operating Temperature	-40 to 250 °F	Weight	1.07 kg

Product resources

Literature and Reference Materials, Selector Guides

Racor--600 Diesel Spin-on--RSL0367 (PDF)

Literature and Reference Materials
