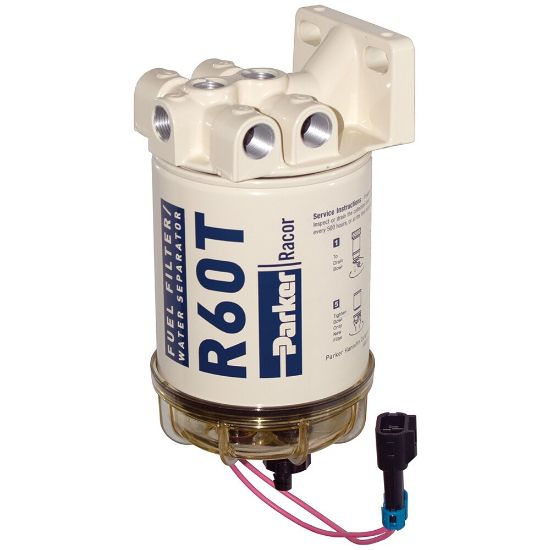

Fuel Filter Water Separator – Racor Spin-on Series - 660R1210

Name: Fuel Filter Water Separator – Racor Spin-on Series - 660R1210
SKU: 660R1210

Racor Spin-on Series Fuel Filter Water Separators provide maximum protection of modern engines by effectively removing water, sand, dirt, and rust contamination from fuel. Integral priming pump and fuel heater available as an option.

Availability:

Backordered

SKU 660R1210

POR

Qty:

Products specifications

Attribute name	Attribute value
Location	North America and EMEA regions	Micron Rating	98% @ 10 Micron
Mounting	Bracket Included	Bowl Type	Standard, Clear Engineering Plastic
Part Type	Filter Assembly	Bowl Material	Clear Engineering Plastic
Integral Primer Pump Included	No Pump	Heater Power Rating	12V / 300W (Diesel Only)
Flow Rate	60 gph (227 lph)	Port Size	3/8"-18 NPTF (SAE J476)
Product Series	Diesel Spin-on 600	Division	Engine Mobile Original Equipment Division
Brand	Racor	Operating Temperature	-40 to 250 °F
Product Type	Diesel Spin-on FF/WS	Head Material	Aluminium Alloy
Number of Ports	2 Inlet / 2 Outlet	Filter Element Type	10 Micron Aquabloc Spin-on
Accessories Included	See Product Support Tab	Maximum Operating Pressure	30 psi
For Fluid Type	Diesel	Maximum Fluid Temperature	88.0 °C
Width	114.0 mm	Compatible Element	R60S = "2" Micron<br/>R60T = 10 Micron<br/>R60P = 30 Micron
Depth	114.0 mm	Weight	1.17 kg
Height	10.2 inch	Clean Pressure Drop	0.05 psi

Product resources

Literature and Reference Materials, Selector Guides

Racor--600 Diesel Spin-on--RSL0367 (PDF)

Literature and Reference Materials
