*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

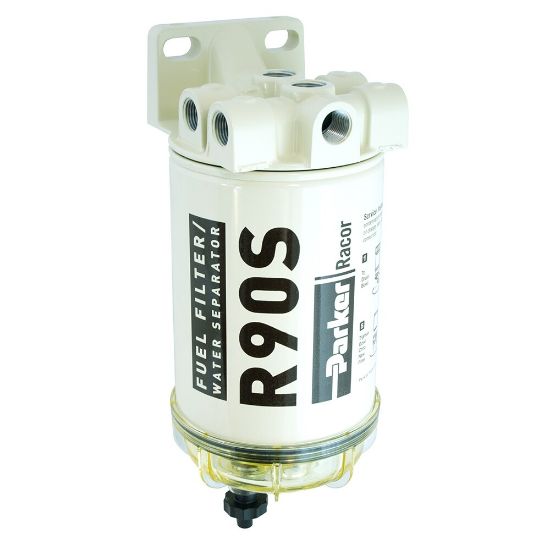

Fuel Filter Water Separator – Racor Spin-on Series - 690R2

Name: Fuel Filter Water Separator – Racor Spin-on Series - 690R2
SKU: 690R2

Racor Spin-on Series Fuel Filter Water Separators provide maximum protection of modern engines by effectively removing water, sand, dirt, and rust contamination from fuel. Integral priming pump and fuel heater available as an option.

Availability:

Backordered

SKU 690R2

POR

Qty:

Products specifications

Attribute name	Attribute value
Port Size	3/8"-18 NPTF (SAE J476)	Part Type	Filter Assembly
Micron Rating	98% @ 4 Micron	Location	North America and EMEA regions
Flow Rate	90 gph (341 lph)	Bowl Material	Clear Engineering Plastic
Integral Primer Pump Included	No Pump	Mounting	Bracket Included
Heater Power Rating	No Heater	Product Series	Diesel Spin-on 600
Bowl Type	Standard, Clear Engineering Plastic	Height	11.2 inch
Clean Pressure Drop	0.29 psi	Brand	Racor
Head Material	Aluminium Alloy	Depth	114.0 mm
Number of Ports	2 Inlet / 2 Outlet	Operating Temperature	-40 to 121 °C
Compatible Element	R90S = "2" Micron<br/>R90T = 10 Micron<br/>R90P = 30 Micron	Weight	2.7 lb
Accessories Included	See Product Support Tab	Division	Engine Mobile Original Equipment Division
Width	114.0 mm	Maximum Operating Pressure	207.0 kPa
Maximum Fluid Temperature	190.0 °F	Filter Element Type	2 Micron Aquabloc Spin-on
For Fluid Type	Diesel and Gasoline	Product Type	Diesel Spin-on FF/WS

Product resources

Literature and Reference Materials, Selector Guides

Racor--600 Diesel Spin-on--RSL0367 (PDF)

Literature and Reference Materials
