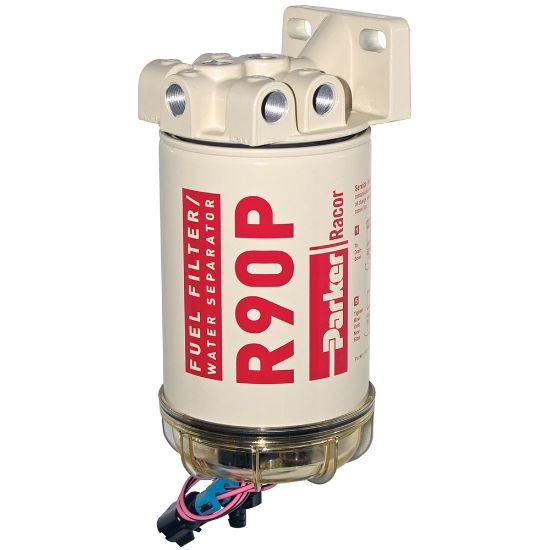

Fuel Filter Water Separator – Racor Spin-on Series - 690R2430MTC

Name: Fuel Filter Water Separator – Racor Spin-on Series - 690R2430MTC
SKU: 690R2430MTC

Racor Spin-on Series Fuel Filter Water Separators provide maximum protection of modern engines by effectively removing water, sand, dirt, and rust contamination from fuel. Integral priming pump and fuel heater available as an option.

Availability:

Backordered

SKU 690R2430MTC

POR

Qty:

Products specifications

Attribute name	Attribute value
Bowl Type	Standard, Clear Engineering Plastic	Location	EMEA region only
Part Type	Filter Assembly	Integral Primer Pump Included	No Pump
Bowl Material	Clear Engineering Plastic	Mounting	Bracket Included
Flow Rate	90 gph (341 lph)	Port Size	M16 1.5 SAE
Heater Power Rating	24V / 200W (Diesel Only)	Product Series	Diesel Spin-on 600
Micron Rating	98% @ 30 Micron	Product Type	Diesel Spin-on FF/WS
Maximum Operating Pressure	30 psi	Width	4.5 inch
Maximum Fluid Temperature	88.0 °C	Clean Pressure Drop	0.29 psi
Head Material	Aluminium Alloy	Compatible Element	R90S = "2" Micron<br/>R90T = 10 Micron<br/>R90P = 30 Micron
Brand	Racor	Number of Ports	2 Inlet / 2 Outlet
Height	284.0 mm	Filter Element Type	30 Micron Aquabloc Spin-on
Depth	4.5 inch	Operating Temperature	-40 to 121 °C
For Fluid Type	Diesel	Weight	2.7 lb
Accessories Included	See Product Support Tab	Division	Engine Mobile Original Equipment Division
