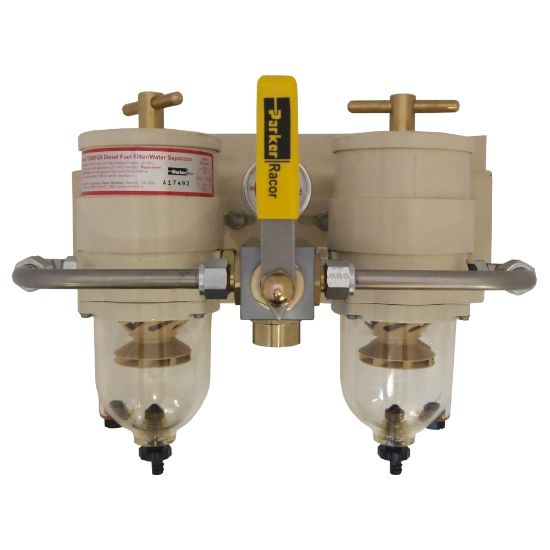

Fuel Filter Water Separator – Racor Turbine Series - 75500FGX2

Name: Fuel Filter Water Separator – Racor Turbine Series - 75500FGX2
SKU: 75500FGX2

The Racor Fuel Filter Water Separator Turbine Series is a three-stage filtration system that provides maximum protection of diesel engine components by effectively removing contaminants from fuel, such as water, silica, sand, dirt, and rust.

Availability:

Backordered

SKU 75500FGX2

POR

Qty:

Products specifications

Attribute name	Attribute value
Heater	Not Included	Location	North America and EMEA regions
Micron Rating	98% @ 4 Micron	Flow Rate	120 gph (454 lph)
Product Type	500FG Filter Housing	Part Type	500 Dual Turbine Assembly
Division	Engine Mobile Original Equipment Division	Brand	Racor
Application	Mobile Filtration	Bowl Type	Clear Engineering Plastic
Series or Model Replaced	Active Part	Valve Type	4-Way Valve
Catalog Number	See RSL0312	Connection Type	3/4”-16 UNF Male (SAE J1926 O-ring Boss)

Product resources

Distributor Support, Literature and Reference Materials, Selector Guides

Racor--Turbine Series Catalog--RSL0385 (PDF)

Literature and Reference Materials
