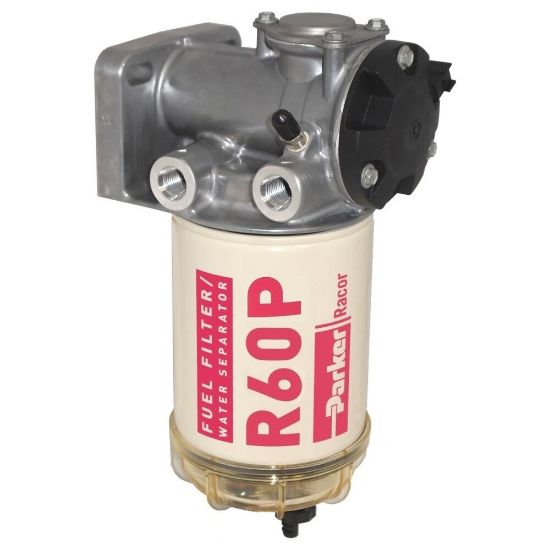

Fuel Filter Water Separator with Integrated Priming Pump – Racor 700 Series - 760R30

Name: Fuel Filter Water Separator with Integrated Priming Pump – Racor 700 Series - 760R30
SKU: 760R30

The Racor 700 Series Fuel Filter Water Separator is a two-stage filtration system designed for use in diesel engine applications. Its integrated fuel pump allows for easy system priming and eliminates messy filter pre-filling and engine hard starting.

Availability:

Backordered

SKU 760R30

POR

Qty:

Products specifications

Attribute name	Attribute value
Flow Rate	60 gph / 227 lph	Pump Type	12V DC, Brushed
Micron Rating	98% @ 30 microns	Mounting Type	Head Bracket
Brand	Racor	Water Sensor Option	Included
Optional Accessories	See Product Overview & Support Tabs	Division	Engine Mobile Original Equipment Division
Compatible Element	R60P	Bowl Type	Clear Engineering Plastic
Pump Type	47 gph (170 lph)	Product Series	Cartridge FF/WS Pump
For Fluid Type	Diesel	Port Size	7/8"-14
Application	Electric Priming	Depth	6.5
Width	4.3	Clean Pressure Drop	0.25
Height	11.8

Product resources

Literature and Reference Materials
