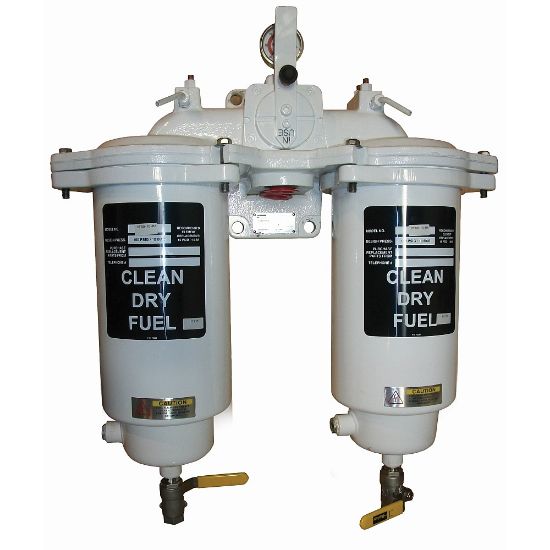

Picture of Fuel Filtration Assemblies – Racor FBO Series - DFBO-10-MA

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Fuel Filtration Assemblies – Racor FBO Series - DFBO-10-MA

Racor FBO Series Filtration Assemblies are designed to meet the tough conditions of today’s industrial and marine refueling operations. The filters come in a variety of configurations and offer easy, tool-free cartridge change-outs.
Availability:
Backordered
SKU DFBO-10-MA
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Filter Element25 Micron Coalescing FilterNumber of HousingsTwo Housings on Dual Head
Use CaseMarineFlow Rate (gpm)Up to 16 in Diesel, 32 Gasoline
Flow Rate (lph)Up to 60 in Diesel, 120 in GasolinePre-Installed Optional AccessoriesDual Head, Vacuum Gauge
Compatible ElementFBO 60329 x 2Product SeriesFBO
Pressure Rating10.3 bar at 115°CValve Type4-Way Valve
Height21.3 inchApplicationFuel Transfer/Engine Filtration
Materials of ConstructionAluminum head, Steel BowlDivisionEngine Mobile Original Equipment Division
Indicator TypeVacuum Gauge IncludedHeat TypeN/A
For Fluid TypeDiesel/B20/GasolinePort Size1-1/2 inch (2x)
Operating Temperature-40 to 124 °CWater Sensor OptionOrder Part# RK18-1656 bushing + RK30880E Sensor
Drain OptionDrain Valve IncludedWidth21.6 inch
BrandRacorMicron Rating25 MICRON available
Additional OptionsWater Sight Glass Part #72710Weight36.4 kg
Mounting TypeDual Unit Bracket Included
Product resources

Literature and Reference Materials
