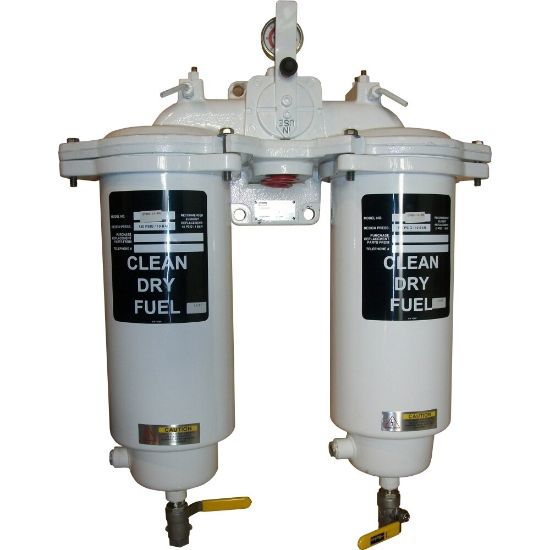

Picture of Fuel Filtration Assemblies – Racor FBO Series - DFBO-14-MA

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Fuel Filtration Assemblies – Racor FBO Series - DFBO-14-MA

Racor FBO Series Filtration Assemblies are designed to meet the tough conditions of today’s industrial and marine refueling operations. The filters come in a variety of configurations and offer easy, tool-free cartridge change-outs.
Availability:
Backordered
SKU DFBO-14-MA
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Flow Rate (gpm)Up to 18 in Diesel, 36 GasolineUse CaseMarine
Filter Element25 Micron Coalescing FilterNumber of HousingsTwo Housings on Dual Head
Pre-Installed Optional AccessoriesDual Head, Vacuum GaugeFlow Rate (lph)Up to 68 in Diesel, 136 Gasoline
Additional OptionsWater Sight Glass Part #72710Pressure Rating150 psi at 240°F
Micron Rating10 MICRONCompatible ElementFBO 60338 x 2
Indicator TypeVacuum Gauge IncludedMounting TypeDual Unit Bracket Included
Height26.8 inchProduct SeriesCartridge FF/WS
Weight85 lbBrandRacor
Drain OptionDrain Valve IncludedWater Sensor OptionOrder Part# RK18-1656 bushing + RK30880E Sensor
Operating Temperature-40 to 255 °FValve Type4-Way Valve
DivisionEngine Mobile Original Equipment DivisionApplicationFuel Transfer/Engine Filtration
Materials of ConstructionAluminum head, Steel BowlWidth54.9 cm
Port Size1-1/2 inch (2x)For Fluid TypeDiesel/B20/Gasoline
Heat TypeN/A
Product resources

Literature and Reference Materials
