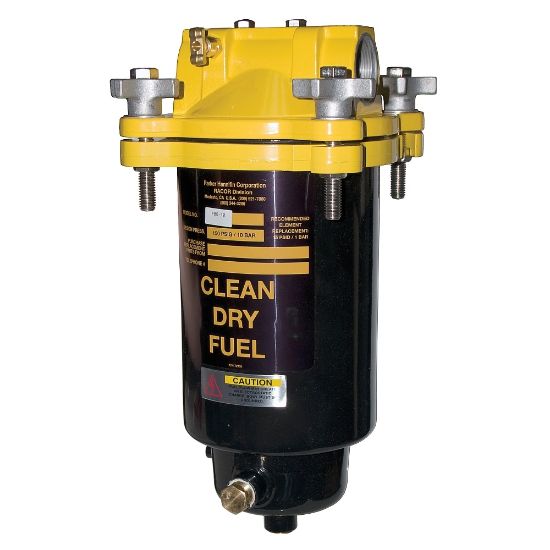

Picture of Fuel Filtration Assemblies – Racor FBO Series - FBO-10

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Fuel Filtration Assemblies – Racor FBO Series - FBO-10

Racor FBO Series Filtration Assemblies are designed to meet the tough conditions of today’s industrial and marine refueling operations. The filters come in a variety of configurations and offer easy, tool-free cartridge change-outs.
Availability:
Backordered
SKU FBO-10
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Filter ElementFilter Element Ordered SeparatelyFlow Rate (lph)Up to 95 in Diesel, 200 Gasoline
Use CaseIndustrialFlow Rate (gpm)Up to 25 in Diesel, 55 Gasoline
Number of HousingsOne Head and HousingPre-Installed Optional AccessoriesBase Model
Width21.8 cmProduct SeriesFBO
Materials of ConstructionAluminum head, Steel BowlApplicationFuel Transfer/Engine Filtration
DivisionEngine Mobile Original Equipment DivisionMounting TypeOptional Bracket Kit Part# 73084
Heat TypeOption: Part# FBO-HTR-KITCompatible ElementFBO SERIES REPLACEMENT ELEMENTS
Water Sensor OptionOrder Part# RK18-1656 bushing + RK30880E SensorMicron Rating25 MICRON available
Pressure Rating150 psi at 240°FAdditional OptionsWater Sight Glass Part #72710
Height47.7 cmPort SizeNPT (2x)
Weight6.8 kgDrain OptionDrain Valve Included
BrandRacorFor Fluid TypeDiesel/B20/Gasoline
Valve TypeNoneOperating Temperature-40 to 124 °C
Indicator TypeOrder Parts#<br/>72694 0-15 psid<br/>72783 0-30 psid
Product resources

Literature and Reference Materials
