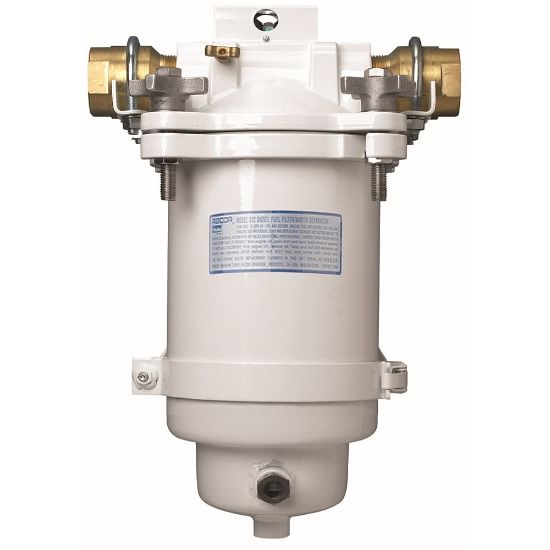

Fuel Filtration Assemblies – Racor FBO Series - FBO-10-MA

Name: Fuel Filtration Assemblies – Racor FBO Series - FBO-10-MA
SKU: FBO-10-MA

Racor FBO Series Filtration Assemblies are designed to meet the tough conditions of today’s industrial and marine refueling operations. The filters come in a variety of configurations and offer easy, tool-free cartridge change-outs.

Availability:

Backordered

SKU FBO-10-MA

POR

Qty:

Products specifications

Attribute name	Attribute value
Number of Housings	One Head and Housing	Use Case	Marine
Pre-Installed Optional Accessories	DP Indicator, Water Sight Glass, Bracket/Fittings	Filter Element	25 Micron Coalescing Filter
Flow Rate (lph)	Up to 95 in Diesel, 200 Gasoline	Flow Rate (gpm)	Up to 25 in Diesel, 55 Gasoline
Brand	Racor	Water Sensor Option	Order Part# RK18-1656 bushing + RK30880E Sensor
Micron Rating	25 MICRON available	Drain Option	Drain Valve Included
Weight	6.8 kg	Port Size	1-1/2 inch (2x)
Operating Temperature	-40 to 124 °C	Width	24 cm
Valve Type	None	For Fluid Type	Diesel/B20/Gasoline
Indicator Type	Delta P Indicator Included	Division	Engine Mobile Original Equipment Division
Pressure Rating	10.3 bar at 115°C	Compatible Element	FBO 60329
Heat Type	N/A	Materials of Construction	Aluminum head, Steel Bowl
Mounting Type	Bracket Kit Included	Height	20 inch
Additional Options	Water Sight Glass Included	Application	Fuel Transfer/Engine Filtration
Product Series	Cartridge FF/WS
