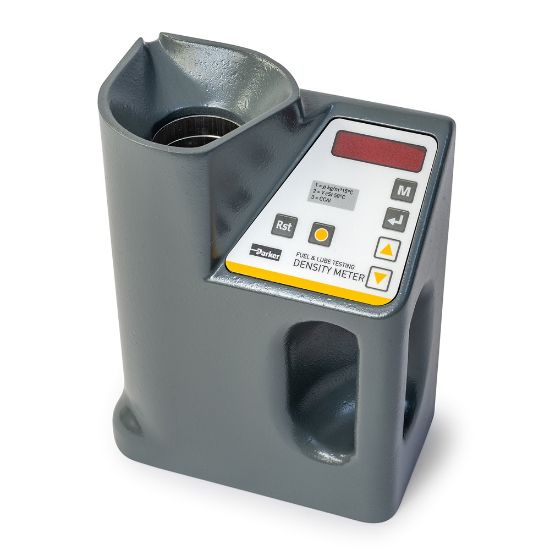

Picture of Fuel Oil Density Meter - FG-K1-300-KW

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Fuel Oil Density Meter - FG-K1-300-KW

Measure diesel and risidual fuel density to confirm the grade and quantity of fuel delivered. Simple on-board testing at bunkering and point of use, for optimal operation performance.
Availability:
Backordered
SKU FG-K1-300-KW
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
BrandKittiwakeDivisionHydraulic & Industrial Process Filtration Division EMEA
BrandPARKERDivisionHydraulic & Industrial Process Filtration Division EMEA
Accessories IncludedThe Density Meter is supplied complete with hydrometers and consumablesOperating Pressuren/a. Manually fed samples
IndustryTransportationFlow Raten/a. Manually fed samples
OptionsThe Density Meter is available standalone or as part of an Oil Analysis SuiteAccuracyTypically within ± 0.1% (800-1010 kg/m³)
TechnologyFiltrationSignal OutputLED visual display only
Connection Typen/a. Manually fed samplesSensing Range800 to 1010 kg/m³ @ 15°C kg/m3 at 15°C
Weight2,2 kgPerformance800 to 1010 kg/m³ @ 15°C
FeaturesMeasuring the density of fuel using hydrometers, the Density Meter can be used to confirm the quantity and grade of fuel delivered.<br/>Density at 15°C in vacuo, centiPoise to centiStokes<br/>Calculated Carbon Aromaticity Index (CCAI)Operating Temperature10 to 40 °C ambient
Product TypeCondition MonitoringSensor ConnectionLED visual display only
Sensing MethodHydrometersFor Fluid TypeMineral, synthetic and bio based fuel and distillate fuels. VLSFO, HFO, MGO
Communication InterfaceLED digits and keypadCycle TimeHeating from 15°C 10 mins, Repeat test maximum 30 seconds
Wetted MaterialAluminium, EpoxyElectrical Requirements110 V to 240 V AC 50/60 Hz 200 VA
Ingress Protection RatingIPX2Size235 x 180 x 105 mm (HWD)
