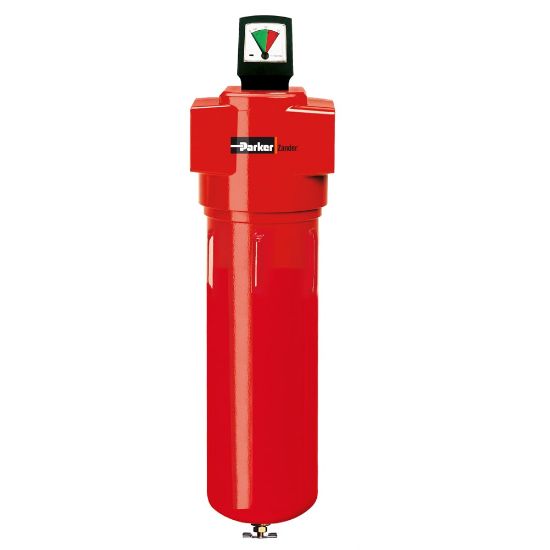

G-CNG Series Filters for Compressed Natural Gas (CNG) - G11XPH/CNG

Name: G-CNG Series Filters for Compressed Natural Gas (CNG) - G11XPH/CNG
SKU: G11XPH/CNG

Parker Zander G-CNG series filters for CNG filtration applications up to 350 bar(g).

Availability:

Backordered

SKU G11XPH/CNG

POR

Qty:

Products specifications

Attribute name	Attribute value
Flow Rate	300 m³/hr (177 cfm @ 102 psig)	Micron Rating	0.01 μm
Filter Type	High Efficiency Coalescing	Connection Type	1" BSPP
Options	None	Weight	4.5 kg
Width	130.0 mm	Compatible Element	2020XP/CNG
Residual Oil Content	<= 0.5 mg/m³	Product Type	High Pressure Compressed Natural Gas Filter
Operating Pressure	350 bar Maximum	Height	406.0 mm
Filter Efficiency Rating	99.99999 %	Division	Gas Separation and Filtration Division EMEA
Division	Gas Separation and Filtration Division EMEA	Product Series	G-CNG Series
Application	Filtration of Compressed Natural Gas	Brand	Zander
Technology	Filtration

Product resources

Literature and Reference Materials

Product Bulletin - Biogas and Biomethane Filters (G-CNG / F-CNG / TGE) - (English) (PDF)
User Manual - G-CNG and F-CNG Series Filters for Compressed Natural Gas (CNG) - (English) (PDF)
