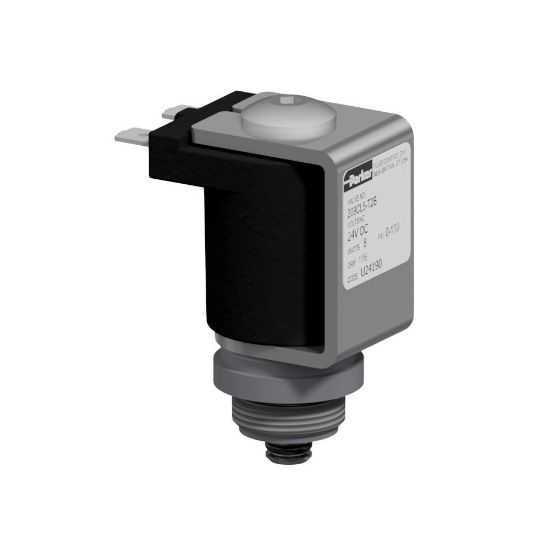

Picture of G4 Series Miniature Solenoid Valves - 209CL5EV4T2A

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

G4 Series Miniature Solenoid Valves - 209CL5EV4T2A

2-Way and 3-Way miniature solenoid valves for industrial and commerical equipment available in both round-body and cartridge-mount variants
Availability:
Backordered
SKU 209CL5EV4T2A
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
DivisionFluid Control DivisionFunctionNormally Closed (NC)
Valve Type2-WayActuation TypeDirect Acting
Minimum Pressure Differential0MediaGeneral Purpose
Seal MaterialFKMBody MaterialStainless Steel 303
Port Size3/4-24 UNS-2AConfigurationAll Ports in Body
Maximum Pressure Differential390Coil Type1/4" Tab/ Spade
Port TypeCartridgeInstallationIOM CV4
Orifice Size3/64Input Voltage12
Power Consumption8Main Flow Coefficient0.06
Maximum Fluid Temperature240Preventive Maintenance Kitn/a
Maximum Ambient Temperature125Insulation ClassF (155°C)
Specifications MetCURus Safety Shutoff
