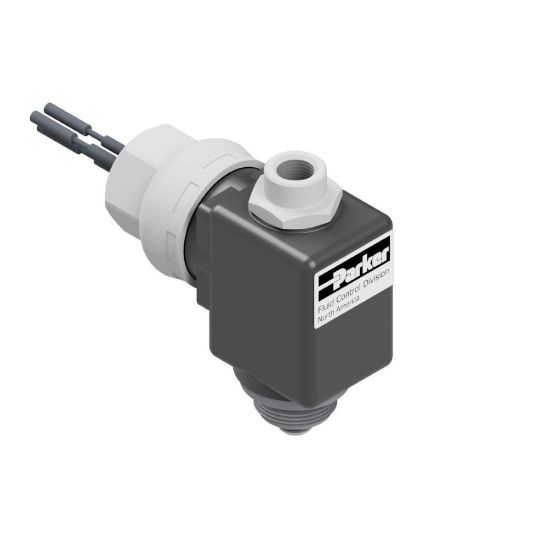

Picture of G4 Series Miniature Solenoid Valves - 309CL5QE4C4F

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

G4 Series Miniature Solenoid Valves - 309CL5QE4C4F

2-Way and 3-Way miniature solenoid valves for industrial and commerical equipment available in both round-body and cartridge-mount variants
Availability:
Backordered
SKU 309CL5QE4C4F
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
DivisionFluid Control DivisionFunctionNormally Closed (NC)
Valve Type3-WayActuation TypeDirect Acting
Minimum Pressure Differential0Exhaust Orifice Size3/32
MediaGeneral PurposeCoil Type1/2" NPT Conduit w/ Leads (Incl. Ground Lead)
Ingress Protection RatingIP65Body MaterialStainless Steel 303
Specifications MetNSF 169Port Size3/4-24 UNS-2A
Port TypeCartridgeInstallationIOM CV4
Input Voltage120/60Seal MaterialEPDM NSF
Maximum Fluid Temperature240Preventive Maintenance Kitn/a
Maximum Ambient Temperature135Insulation ClassF (155°C)
Orifice Size5/32Main Flow Coefficient0.38
Power Consumption10ConfigurationPressure In Body - Out Sleeve
Maximum Pressure Differential25Exhaust Flow Coefficient0.20
