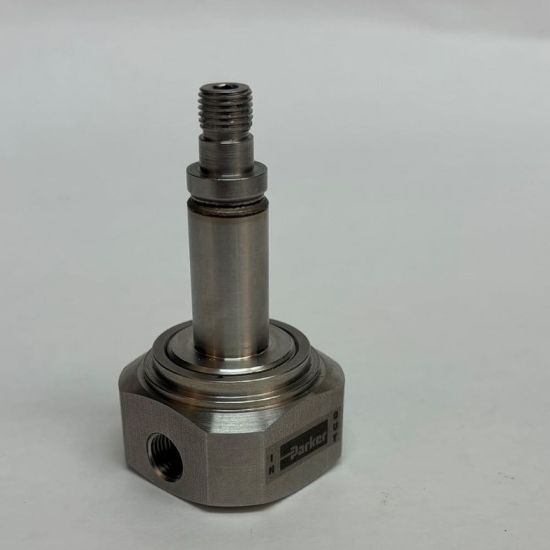

Picture of G7 SERIES Solenoid Valves - 20CC041V7

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

G7 SERIES Solenoid Valves - 20CC041V7

The Evolution of Gold Ring™ and Skinner®
Next-Generation 2-Way and 3-Way Solenoid Valves
Availability:
Backordered
SKU 20CC041V7
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Seal MaterialFKMConfigurationNormally Closed
VoltagePressure Vessel Only (AC or DC Voltage)Function2-Way
Coil TypeRequires G7 Series Coil KitBody Material303 Stainless Steel
Port Size (inch)1/4 NPTOrifice Size (inch)9/32
Minimum Pressure Differential (psi)0Maximum Operating Pressure Differential (psig)40 (AC) / 15 (DC)
DivisionFluid Control DivisionActuation TypeDirect Acting
Minimum Pressure Differential0 psiSeal MaterialFKM
Body MaterialStainless Steel 303ConfigurationAll Ports in Body
Input VoltagePressure Vessel Only (AC or DC Voltage)Function2-Way
Port SizeNPT 1/4 inchInstallationIOM7220
Orifice Size9/32 inchPower Consumption10 W
Specifications Met-Main Flow Coefficient1.06 Cv
Maximum Fluid Temperature185 °FPreventive Maintenance Kit7R003
Maximum Ambient Temperature150 °FMaximum Pressure Differential40 psig (AC)
Coil Specifications MetRequires G7 Series Coil KitExhaust Flow Coefficientn/a
