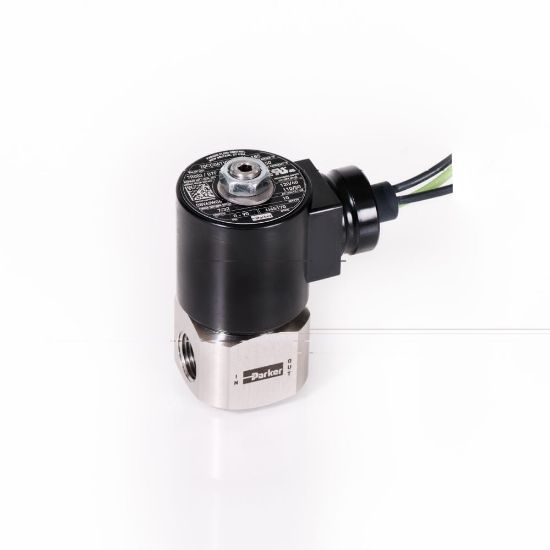

Picture of G7 SERIES Solenoid Valves - 20CC041V7B7G

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

G7 SERIES Solenoid Valves - 20CC041V7B7G

The Evolution of Gold Ring™ and Skinner®
Next-Generation 2-Way and 3-Way Solenoid Valves
Availability:
Backordered
SKU 20CC041V7B7G
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Seal MaterialFKMConfigurationNormally Closed
Voltage240/60, 220/50Function2-Way
Coil TypeLeads-only (Incl. Ground Lead)Body Material303 Stainless Steel
Port Size (inch)1/4 NPTOrifice Size (inch)9/32
Minimum Pressure Differential (psi)0Maximum Operating Pressure Differential (psig)40
DivisionFluid Control DivisionActuation TypeDirect Acting
Minimum Pressure Differential0Seal MaterialFKM
ConfigurationNormally Closed (NC)Body MaterialStainless Steel 303
Specifications MetCURus Safety ShutoffFunction2-Way
Port SizeNPT 1/4InstallationIOM7220
Orifice Size9/32Input Voltage220/50
Power Consumption10Main Flow Coefficient1.06
Maximum Fluid Temperature185Preventive Maintenance Kit7R003
Maximum Ambient Temperature150Maximum Pressure Differential40
Coil Specifications MetIP69Exhaust Flow Coefficientn/a
