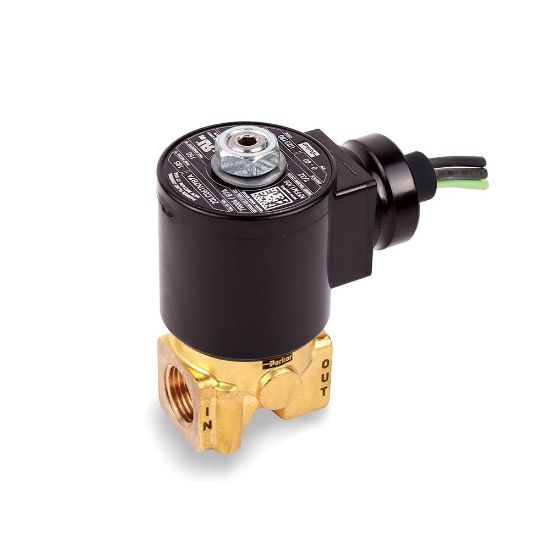

Picture of G7 SERIES Solenoid Valves - 20LC04GN7B7B

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

G7 SERIES Solenoid Valves - 20LC04GN7B7B

The Evolution of Gold Ring™ and Skinner®
Next-Generation 2-Way and 3-Way Solenoid Valves
Availability:
Backordered
SKU 20LC04GN7B7B
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Seal MaterialNBRBody MaterialLead-Free Brass
ConfigurationNormally ClosedVoltage24 VDC
Function2-WayCoil TypeLeads-only (Incl. Ground Lead)
Port Size (inch)1/4 NPTOrifice Size (inch)1/16
Minimum Pressure Differential (psi)0Maximum Operating Pressure Differential (psig)750
Input Voltage24.0DivisionFluid Control Division
Seal MaterialNBRActuation TypeDirect Acting
Minimum Pressure Differential0Body MaterialLead-Free Brass
ConfigurationNormally Closed (NC)Orifice Size1/16
Specifications MetCURus Safety ShutoffMain Flow Coefficient0.1
Function2-WayPort SizeNPT 1/4
InstallationIOM7220Power Consumption10
Maximum Fluid Temperature185Maximum Ambient Temperature150
Maximum Pressure Differential750Coil Specifications MetIP69
Exhaust Flow Coefficientn/aPreventive Maintenance Kit7R004
