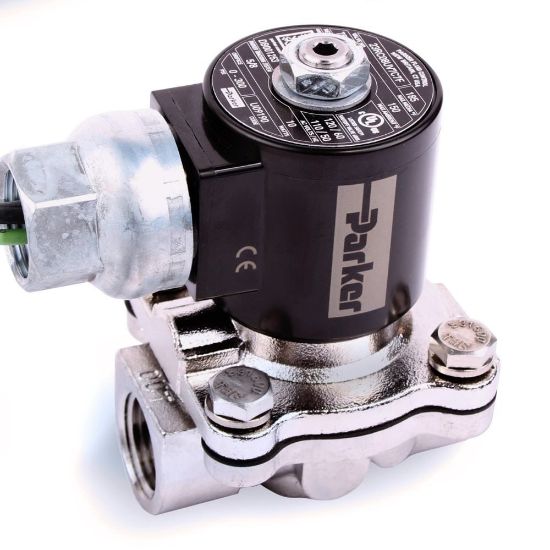

Picture of G7 SERIES Solenoid Valves - 22RC06TV7C7A

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

G7 SERIES Solenoid Valves - 22RC06TV7C7A

The Evolution of Gold Ring™ and Skinner®
Next-Generation 2-Way and 3-Way Solenoid Valves
Availability:
Backordered
SKU 22RC06TV7C7A
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Coil Type1/2" NPT Conduit w/ Leads (Incl. Ground Lead)Seal MaterialFKM
ConfigurationNormally ClosedVoltage12 VDC
Function2-WayPort Size (inch)3/8 NPT
Orifice Size (inch)5/8Minimum Pressure Differential (psi)5
Maximum Operating Pressure Differential (psig)150Body Material316L Stainless Steel
DivisionFluid Control DivisionMaximum Pressure Differential150
Input Voltage12.0Seal MaterialFKM
Minimum Pressure Differential5Actuation TypeInternal Pilot
ConfigurationNormally Closed (NC)Maximum Ambient Temperature125
Specifications MetCULus Safety ShutoffFunction2-Way
Power Consumption10Maximum Fluid Temperature185
Coil Specifications MetIP69Exhaust Flow Coefficientn/a
Port SizeNPT 3/8InstallationIOM7222
Orifice Size5/8Main Flow Coefficient3
Body MaterialStainless Steel 316LPreventive Maintenance Kit7R032
