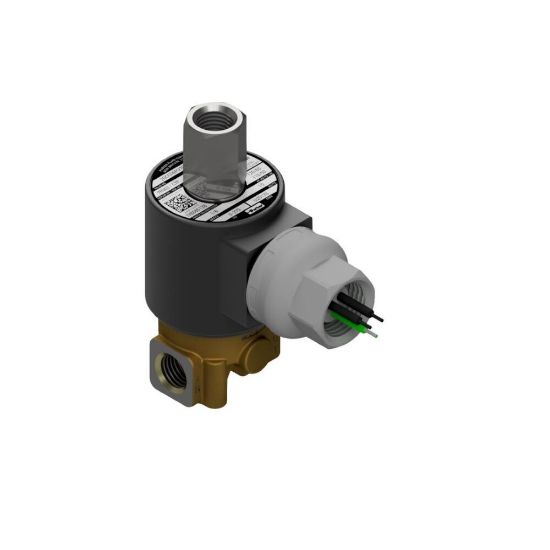

Picture of G7 SERIES Solenoid Valves - 30LU04AV7C7G

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

G7 SERIES Solenoid Valves - 30LU04AV7C7G

The Evolution of Gold Ring™ and Skinner®
Next-Generation 2-Way and 3-Way Solenoid Valves
Availability:
Backordered
SKU 30LU04AV7C7G
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Coil Type1/2" NPT Conduit w/ Leads (Incl. Ground Lead)Seal MaterialFKM
Body MaterialLead-Free BrassVoltage240/60, 220/50
Port Size (inch)1/4 NPTMinimum Pressure Differential (psi)0
Function3-WayConfigurationUniversal
Orifice Size (inch)1/32Maximum Operating Pressure Differential (psig)435
DivisionFluid Control DivisionActuation TypeDirect Acting
Minimum Pressure Differential0Seal MaterialFKM
Body MaterialLead-Free BrassOrifice Size1/32
Main Flow Coefficient0.02Port SizeNPT 1/4
Input Voltage220/50Power Consumption10
Specifications MetCULus General PurposeMaximum Fluid Temperature185
Maximum Ambient Temperature150Coil Specifications MetIP69
Exhaust Flow Coefficient0.02Function3-Way
InstallationIOM7221Maximum Pressure Differential435
ConfigurationUniversalPreventive Maintenance Kit7R010
