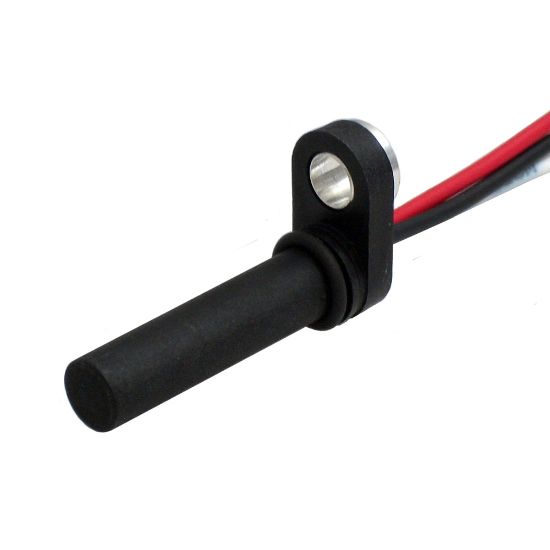

Picture of Gear Speed Sensor - GS - 01711ECD

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Gear Speed Sensor - GS - 01711ECD

Parker's GS Gear Speed Sensors provide a sinking output when detecting a ferrous target. They use back-biased, Hall Effect technology for zero speed sensing capability. Offered in multiple mounting configurations, they are immune to alignment issues.
Availability:
Backordered
SKU 01711ECD
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Model NumberGS50Frequency0 to 15 kHz
Ingress Protection Rating67IndustryMaterial Handling
Operating Current6 mA max.Minimum Operating Temperature-20 °C
Maximum Operating Temperature125 °CAir Gap0 to 3 mm
DivisionElectronic Motion and Controls DivisionSensor TypeSpeed
Output Current Rating25 mASignal OutputOpen Collector
Electrical ConnectionDTM04Mounting TypeFlanged
Power Supply Voltage5 to 16 VDC RegulatedHousing MaterialGlass-filled Nylon
