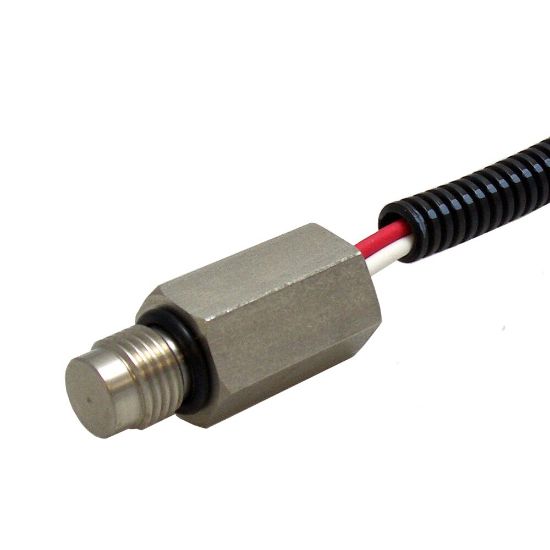

Picture of Gear Speed Sensor - GS - 154877ECD

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Gear Speed Sensor - GS - 154877ECD

Parker's GS Gear Speed Sensors provide a sinking output when detecting a ferrous target. They use back-biased, Hall Effect technology for zero speed sensing capability. Offered in multiple mounting configurations, they are immune to alignment issues.
Availability:
Backordered
SKU 154877ECD
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Model NumberGS70DivisionElectronic Motion and Controls Division
Ingress Protection Rating67Minimum Operating Temperature-40
Maximum Operating Temperature85Sensor TypeSpeed
Housing MaterialStainless SteelSignal OutputOpen Collector
Operating Current13.5 mA max.IndustryConstruction
Power Supply Voltage5 to 27Electrical ConnectionDT04
Output Current Rating30Mounting TypeISO 6149-1 M14x1.5
Air Gap0 to 3Frequency0 to 15
Output TypeAnalog
