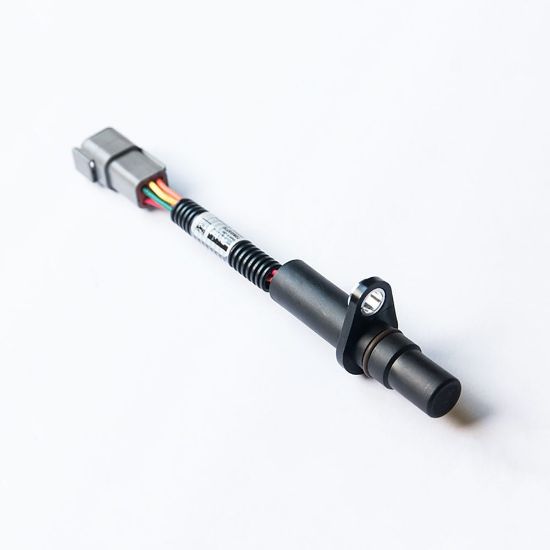

Picture of Gear Speed Sensor - GS - 167758ECD

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Gear Speed Sensor - GS - 167758ECD

Parker's GS Gear Speed Sensors provide a sinking output when detecting a ferrous target. They use back-biased, Hall Effect technology for zero speed sensing capability. Offered in multiple mounting configurations, they are immune to alignment issues.
Availability:
Backordered
SKU 167758ECD
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Model NumberGS100DivisionElectronic Motion and Controls Division
Housing MaterialGlass-filled NylonIndustryAgriculture
Minimum Operating Temperature-40Maximum Operating Temperature85
Sensor TypeSpeedIngress Protection RatingIP67
Weight0.1Electrical ConnectionDTM04-6P
ApplicationEngine/Transmission Speed and DirectionO-Ring MaterialAS-568A-114 or equal
Mounting TypeM8 FlangeOperating Current34
Power Supply Voltage8 to 16Air Gap1.02 to 2.03
Frequency0 to 5Output Typej1939 CAN
Signal Outputj1939 CAN
