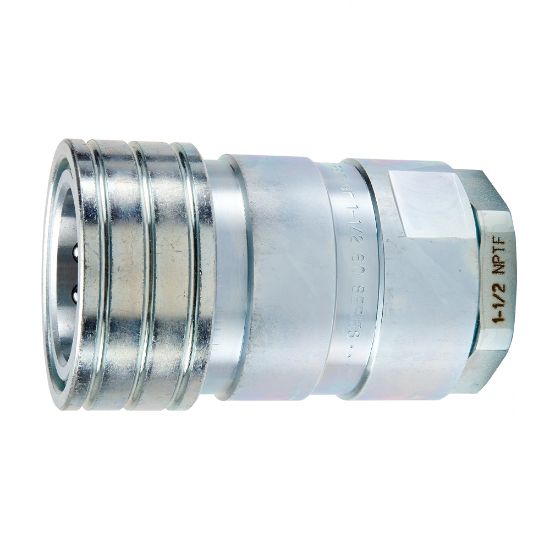

Picture of General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series - H2016-62-BSPP

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series - H2016-62-BSPP

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.
Availability:
Backordered
SKU H2016-62-BSPP
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Connection Thread Size (inch)2 - 11-1/2Seal MaterialNitrile
Coupling HalfFemale CouplerBody MaterialSteel
ApplicationGeneral PurposeConnection TypeFemale BSPP
Body Size (inch)2 1/2Maximum Operating Pressure1500
Hex Size3.75 inchPlating TypeZinc with clear trivalent chromate
Flow Rate757 L/minDivisionQuick Coupling Division
Valve TypePoppetProduct TypeManual Connect
Specifications MetISO 7241-1 Series BValve MaterialSteel
Ball MaterialSteelVacuum Pressure Ratingn/a
Maximum Operating Temperature250 °FMinimum Operating Temperature-40 °F
Body MaterialSteel
