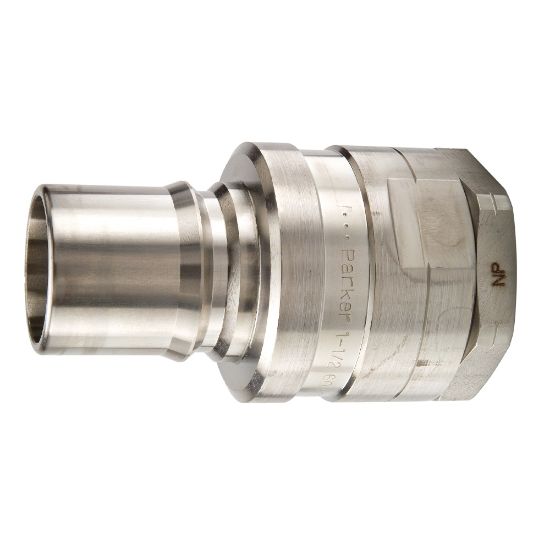

Picture of General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series - SH12-63N-BSPP

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series - SH12-63N-BSPP

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.
Availability:
Backordered
SKU SH12-63N-BSPP
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Coupling HalfMale NippleApplicationGeneral Purpose
Body Material303 Stainless SteelBody Size (inch)1 1/2
Connection Thread Size (inch)1 1/2 - 11 1/2Maximum Operating Pressure1500
Connection TypeFemale BSPPSeal MaterialNitrile
Valve MaterialStainless Steel 303Specifications MetISO 7241-1 Series B
Maximum Operating Temperature121 °CFlow Rate378 L/min
Minimum Operating Temperature-40 °FVacuum Pressure Ratingn/a
Hex Size2.50 inchDivisionQuick Coupling Division
Body MaterialStainless SteelProduct TypeManual Connect
Valve TypePoppetPlating Typen/a
