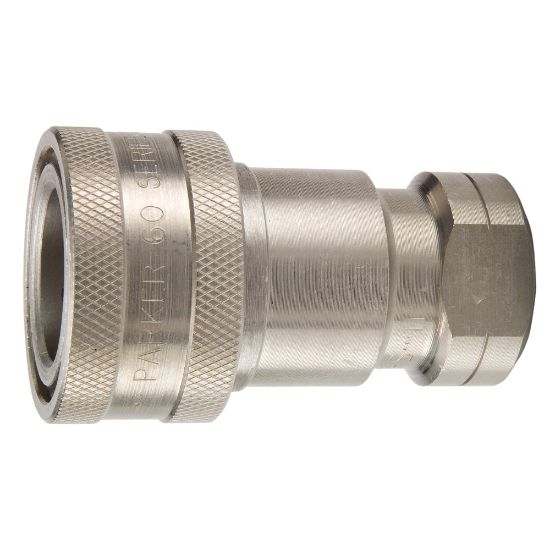

Picture of General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series - SH8-62-BSPP

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series - SH8-62-BSPP

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.
Availability:
Backordered
SKU SH8-62-BSPP
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Body Size (inch)1Coupling HalfFemale Coupler
ApplicationGeneral PurposeBody Material303 Stainless Steel
Maximum Operating Pressure3000Connection Thread Size (inch)1 - 11-1/2
Connection TypeFemale BSPPSeal MaterialNitrile
Body MaterialStainless SteelHex Size1.62 inch
Ball MaterialStainless SteelValve TypePoppet
Product TypeManual ConnectFlow Rate50 Gal/min
Valve Material303 Stainless steelSpecifications MetISO 7241-1, series B
Maximum Operating Temperature250 °FMinimum Operating Temperature-40 °F
DivisionQuick Coupling DivisionVacuum Pressure Rating27.4 Inch-Hg
Plating Typena
