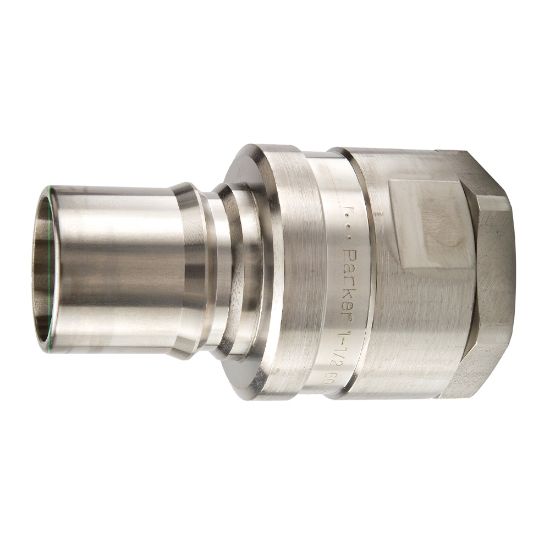

Picture of General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series - SSH12-63LY

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series - SSH12-63LY

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.
Availability:
Backordered
SKU SSH12-63LY
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Seal MaterialFluorocarbonBody Size (inch)1 1/2
Coupling HalfMale NippleApplicationGeneral Purpose
Connection TypeFemale NPTFMaximum Operating Pressure1500
Connection Thread Size (inch)1 1/4 - 11 1/2Body Material316 Stainless Steel
Specifications MetISO 7241-1 Series BValve TypePoppet
Valve MaterialStainless Steel 316Flow Rate378 L/min
Minimum Operating Temperature-15 °FVacuum Pressure Ratingn/a
Hex Size2.50 inchMaximum Operating Temperature204 °C
DivisionQuick Coupling DivisionBody MaterialStainless Steel
Plating Typen/aProduct TypeManual Connect
Product resources

Compliance, Certifications & Safety

Literature and Reference Materials
