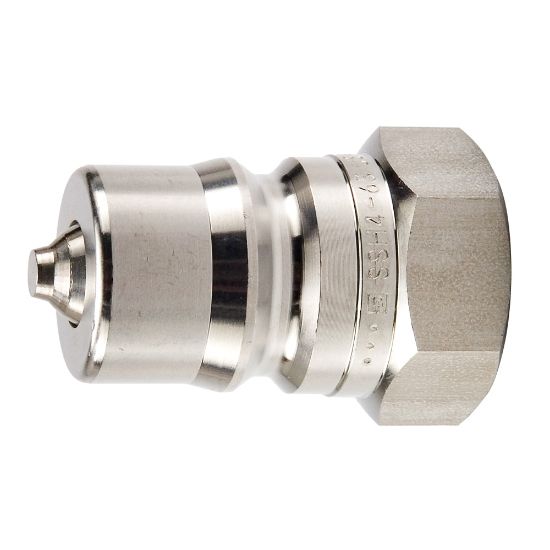

Picture of General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series - SSH6-63Y-BSPP

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series - SSH6-63Y-BSPP

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.
Availability:
Backordered
SKU SSH6-63Y-BSPP
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Body Material316 Stainless SteelConnection Thread Size (inch)3/4 - 14
Seal MaterialFluorocarbonCoupling HalfMale Nipple
Body Size (inch)3/4ApplicationGeneral Purpose
Connection TypeFemale BSPPMaximum Operating Pressure3000
Flow Rate28 Gal/minValve Material316 Stainless steel
Vacuum Pressure Rating27.4 Inch-HgDivisionQuick Coupling Division
Plating TypenaBody MaterialStainless Steel
Valve TypePoppetSpecifications MetISO 7241-1, series B
Maximum Operating Temperature400 °FMinimum Operating Temperature-15 °F
Hex Size1.38 inch
