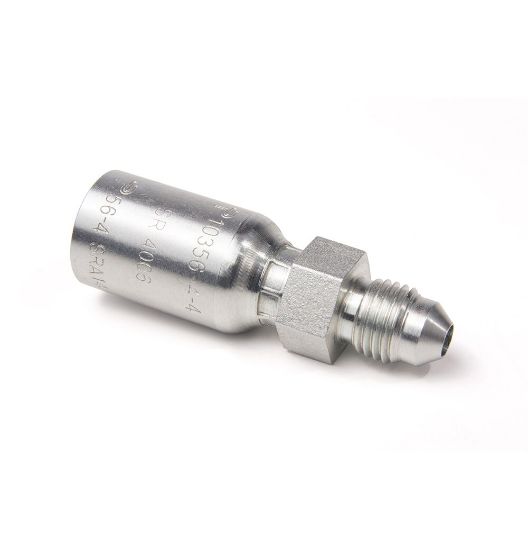

Picture of Global Fittings - 56 Series - Inch - 10456-6-5

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Global Fittings - 56 Series - Inch - 10456-6-5

The Global 56 Series replaces the 55/58 Series. It is shorter, more compact, and is 20% lighter than comparable fittings.
Availability:
Backordered
SKU 10456-6-5
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Materials of ConstructionSteelProduct StyleMale SAE 45° - Rigid - Straight
Length (inch)2.18"Hose I.D. (inch)0.3125"
Connection 2 Size5/8"-18BrandPARKER
DivisionParflex DivisionBody MaterialSteel
ShapeStraightTechnologyFluid & Gas Handling
Connection 2 TypeMaleCoatingChromium 6 Free-plated
DivisionParflex DivisionHex Size 1n/a
ConfigurationHose to PortFor Fluid TypeHydraulic Fluids
Connection 1 TypeHoseTube Outside Diametern/a
Connection 1 Size5/16 inch Hose I.D.ApplicationPublic Works
Hex Size11/16 inch (see drawing legend H)IndustryOff-road Machinery
Hex Size 2n/aConnection Length1-3/16 inch Cut-off allowance
Maximum Operating Pressure5000 psi (Dependent on hose)Fitting Length2.18 inch (see drawing legend A)
Shipping Weight0.119Connection 2 Size5/8"-18 inch Thread
Product resources

Compliance, Certifications & Safety

Literature and Reference Materials
